AV09C7L3D2406E VANDAL RESISTANT SW, SPST-NO, 0.05A APEM

APEMSKU:AV09C7L3D2406E Bestelcode:1082434

Prijs:
Actie prijs€57,94

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (80 units)

Documenten en downloads

Omschrijving

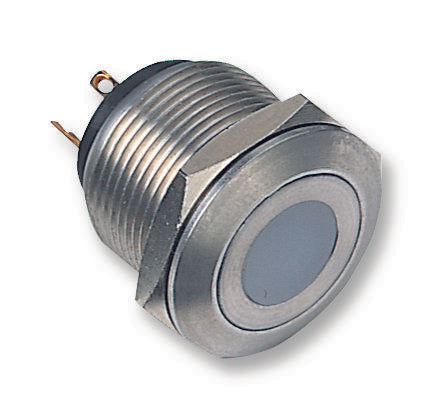

APEM - AV09C7L3D2406E - Vandal Resistant Switch, AV Series, 19.2 mm, SPST-NO, Momentary, Flush, Natural

  • Contact Configuration: SPST-NO
  • Actuator / Cap Colour: Natural
  • Product Range: AV Series
  • Switch Operation: Momentary
  • Illumination Colour: Red
  • Switch Terminals: Solder Lug
  • Contact Current Max: 50mA
  • Contact Voltage AC Max: -
  • Operating Force: 7N
  • Contact Voltage DC Max: 24VDC
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Flat
  • Behind Panel Depth: 21.6mm
  • Contact Current DC Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Nom: 24V
  • Contact Voltage VDC: 24V
  • Current Rating: 50mA
  • External Diameter: 22mm
  • External Length / Height: 23.8mm
  • IP / NEMA Rating: IP65
  • IP Rating: IP54
  • Insulation Resistance: 1000Mohm
  • LED Colour: Red
  • LED Current: 30mA
  • LED Voltage: 1.6V
  • No. of Electrical Operations: 1000000
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -30°C
  • Panel Cutout Diameter: 19.2mm
  • Panel Thickness Max: 10.5mm
  • Pushbutton Actuator Style: Flush
  • Pushbutton Switch Type: Anti-Vandal
  • Switch Mounting: Panel
