Omschrijving

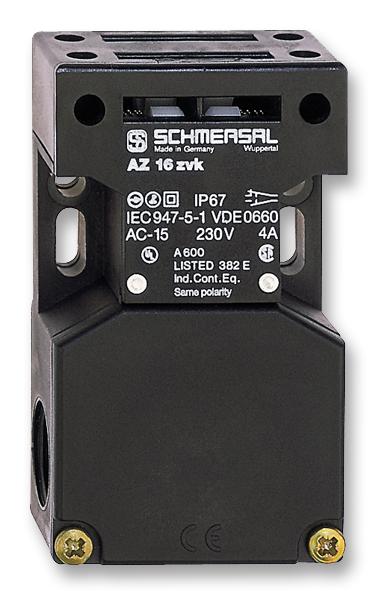

SCHMERSAL - AZ16ZVRK-M20-2254 - Limit Switch, 1NO / 1NC, 4 A, 230 V, 5 N
- Limit Switch Actuator: -
- Contact Configuration: 1NO / 1NC
- Contact Current AC Max: 4A
- Contact Voltage AC Max: 230V
- Operating Force Max: 5N
- Product Range: -
- Contact Current DC Max: 4A
- Contact Voltage DC Max: 24V
- Actuator Type: Seperate
- Approval Bodies: BG, CCC
- Approval Category: UL Recognised
- Case Material: Plastic
- Conduit Thread Size: M 20
- External Depth: 30mm
- External Length / Height: 90mm
- External Width: 52mm
- IP / NEMA Rating: IP67
- Insulation Voltage: 500V
- Operating Temperature Max: 80°C
- Operating Temperature Min: -30°C
- Switch Terminals: Screw
- Thermal Current Rating: 10A
