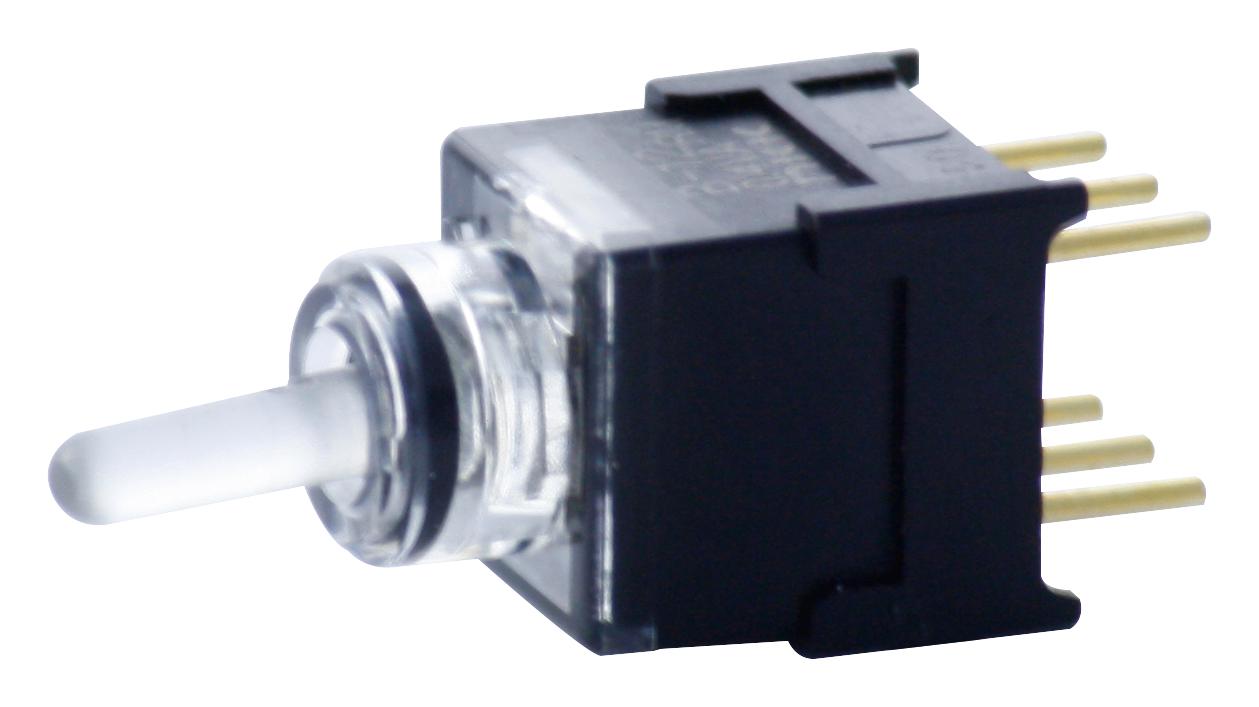

NKK SWITCHES - B12JJPCF - Toggle Switch, On-On, SPDT, Illuminated, B - Illuminated Series, Panel Mount
- Switch Operation: On-On
- Contact Configuration: SPDT
- Illumination: Illuminated
- Product Range: B - Illuminated Series
- Contact Current Max: -
- Switch Mounting: Panel
- Contact Voltage AC Nom: 28V
- Switch Terminals: Solder
- Contact Voltage DC Nom: 28V
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Lever
- Bush Diameter: 6mm
- Bush Thread Length: 3.5mm
- Colour: Red / Green
- Contact Current AC Max: 100mA
- Contact Current DC Max: 100mA
- Contact Resistance Max: 50mohm
- Contact Voltage AC Max: 28VAC
- Contact Voltage AC Min: 20mV
- Contact Voltage DC Max: 28VDC
- Contact Voltage DC Min: 20mV
- External Depth: 8.8mm
- External Width: 8.8mm
- Height: 13.1mm
- Insulation Resistance: 500Mohm
- Insulation Resistance Voltage: 500VDC
- Lever Length: 6.3mm
- Material: Glass Fibre Reinforced Polyamide
- No. of Electrical Operations: 50000
- Operating Temperature Max: 55°C
- Operating Temperature Min: -30°C
- Pin Diameter: 0.6mm
- Shaft Diameter: 1.9mm
- Switch Action: Nonshorting (Break-before-make)
- Switching Current AC Max: 0.1A
