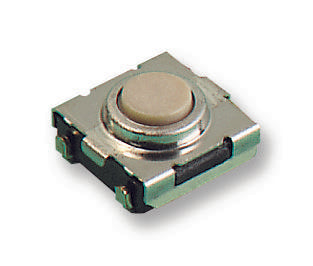

B3FS-1012 Tactile Switch, 0.05A, 24Vdc, Illum, SMT Omron

OMRONSKU:B3FS-1012 Bestelcode:1181017

Prijs:
Actie prijs€1,31

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (325 units)

Documenten en downloads

Omschrijving

OMRON - B3FS-1012 - Tactile Switch, B3FS, Top Actuated, Surface Mount, Plunger for Cap, 150 gf, 50mA at 24VDC

  • Product Range: B3FS Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: SMD
  • Actuator Style: Plunger for Cap
  • Actuating Force: 150gf
  • Contact Rating: 50mA at 24VDC
  • Switch Dimensions (L x W): 6.3mm x 6.3mm
  • IP Rating: IP00
  • Illumination: Non Illuminated
  • Actuation Type: Top
  • Actuator / Cap Colour: White
  • Contact Configuration: SPST-NO
  • Contact Current DC Max: 50mA
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 24V
  • Contact Voltage DC Nom: 24V
  • External Depth: 6mm
  • External Length / Height: 4.3mm
  • External Width: 6mm
  • Insulation Resistance: 100Mohm
  • No. of Mechanical Operations: 1000000
  • Operating Force: 1.47N
  • Operating Force Max: 1.47N
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Pre-travel: 0.25mm
  • Resistive Current Rating: 50mA
  • Return Force Min: 50gf
  • Switch Operation: Off-On
  • Switch Terminals: Solder

Verwachte verzendkosten

Bekijk ook eens

B3FS-1000 TACTILE SWITCH, 0.05A, 24VDC, ILLUM, SMT OMRON
OMRON B3FS-1000 Tactile Switch, 0.05A, 24Vdc, Illum, SMT Omron
Actie prijs€0,94
Op voorraad, 26305 producten
B3S-1002 SWITCH, SPST, 0.05A, 24VDC, SMD OMRON
OMRON B3S-1002 Switch, SPST, 0.05A, 24Vdc, SMD Omron
Actie prijs€1,06
Op voorraad, 7579 producten
B3FS-1012P TACTILE SW, SPST-NO, 0.05A, 24VDC, SMD OMRON
OMRON B3FS-1012P Tactile SW, SPST-NO, 0.05A, 24Vdc, SMD Omron
Actie prijs€0,79
Op voorraad, 6421 producten
B3F-3100 SWITCH, SPNO, 0.05A, 24V, PCB, 0.98N OMRON
OMRON B3F-3100 Switch, SPNO, 0.05A, 24V, Pcb, 0.98N Omron
Actie prijs€0,75
Op voorraad, 3574 producten
B3U-3000P TACTILE SWITCH, SIDE ACTUATED, SMD OMRON
OMRON B3U-3000P Tactile Switch, Side Actuated, SMD Omron
Actie prijs€1,89
Op voorraad, 4699 producten
B3FS-4002P SWITCH, SPST, 0.05A, 24VDC, SMD OMRON
OMRON B3FS-4002P Switch, SPST, 0.05A, 24Vdc, SMD Omron
Actie prijs€2,05
Op voorraad, 540 producten

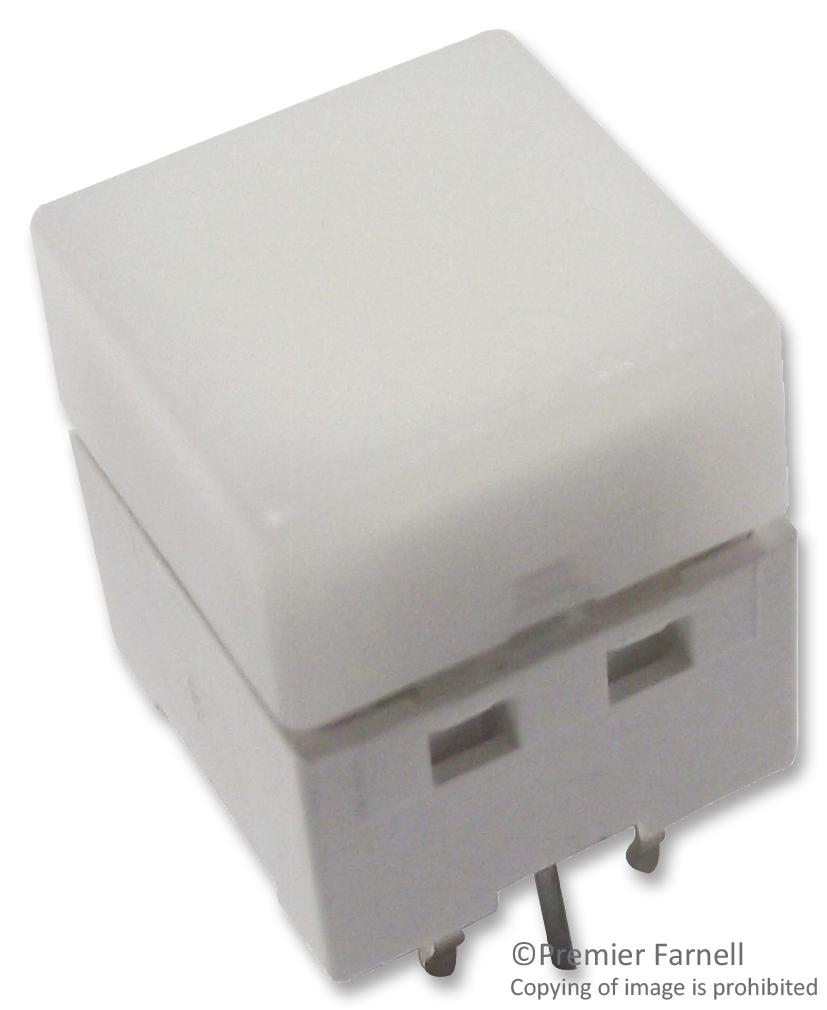

B3W-9000-RG2N SWITCH, ILLUMINATED, PCB, RED/GREEN OMRON
