B3J-1100 Switch, SPNO, Black Omron

OMRONSKU:B3J-1100 Bestelcode:176461

Prijs:
Actie prijs€4,27

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (94 units)

Documenten en downloads

Omschrijving

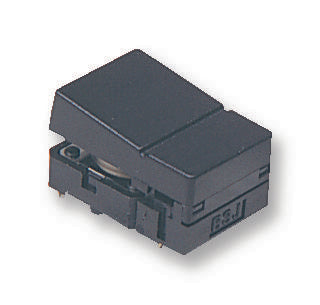

OMRON - B3J-1100 - Tactile Switch, B3J, Top Actuated, Through Hole, Hinged Button, 127 gf, 50mA at 24VDC

  • Product Range: B3J Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: Through Hole
  • Actuator Style: Hinged Button
  • Actuating Force: 127gf
  • Contact Rating: 50mA at 24VDC
  • Switch Dimensions (L x W): 18mm x 12mm
  • IP Rating: IP00
  • Illumination: Non Illuminated
  • Actuation Type: Rectangular
  • Actuator / Cap Colour: Black
  • Colour: Black, Red Illumination
  • Contact Configuration: SPST-NO
  • Contact Current @ Contact Voltage DC Min: 1mA
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Nom: 24V
  • Dielectric Strength VDC: 500V
  • External Depth: 10.3mm
  • External Length / Height: 18mm
  • External Width: 12mm
  • Insulation Resistance: 100Mohm
  • No. of Electrical Operations: 30000000
  • No. of Mechanical Operations: 30000000
  • Operating Force: 1.27N
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Switch Operation: Off-On
