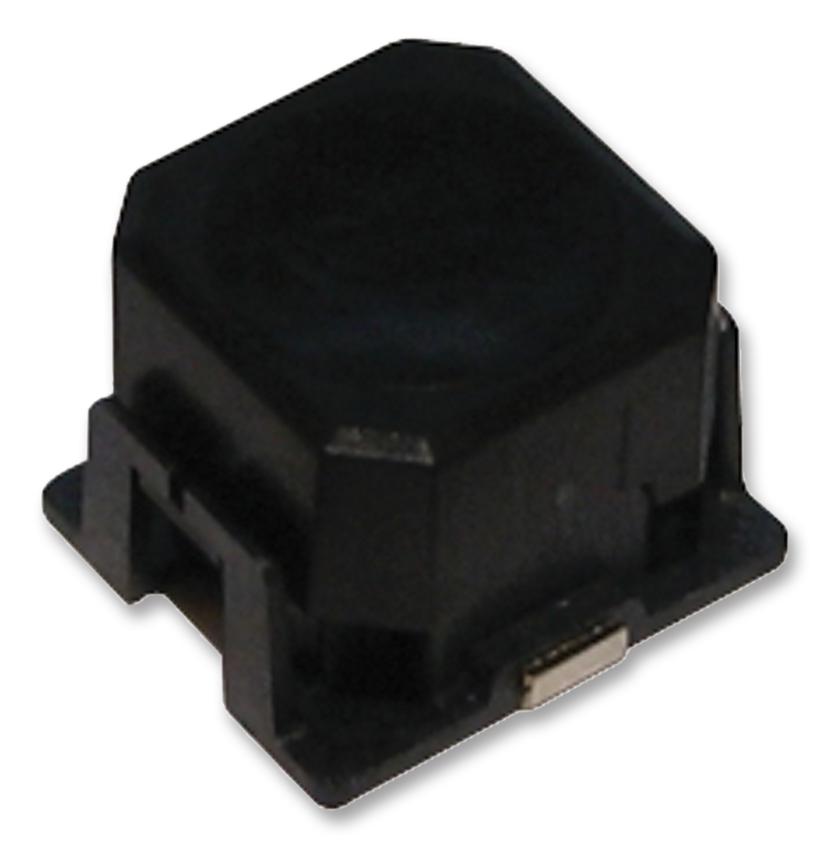

B3U-3000P Tactile Switch, Side Actuated, SMD Omron

OMRONSKU:B3U-3000P Bestelcode:1333655

Prijs:
Actie prijs€1,89

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (4868 units)

Documenten en downloads

Omschrijving

OMRON - B3U-3000P - Tactile Switch, B3U, Side Actuated, Surface Mount, Rectangular Button, 162 gf, 50mA at 12VDC

  • Product Range: B3U Series
  • Actuator Orientation: Side Actuated
  • Switch Mounting: SMD
  • Actuator Style: Rectangular Button
  • Actuating Force: 162gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 3mm x 2.5mm
  • IP Rating: IP40
  • Illumination: Non Illuminated
  • Actuation Type: Side
  • Actuator Type: Side Actuated
  • Contact Configuration: SPST-NO
  • Contact Current DC Max: 50mA
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 12VDC
  • Contact Voltage DC Min: 5VDC
  • Contact Voltage DC Nom: 12V
  • Dielectric Strength VDC: 250VAC
  • External Depth: 2.5mm
  • External Length / Height: 1.2mm
  • External Width: 3mm
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 100VDC
  • No. of Electrical Operations: 100000
  • No. of Mechanical Operations: 100000
  • Operating Force: 1.59N
  • Operating Force Max: 2.08N
  • Operating Force Min: 1.1N
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Pre-travel: 0.2mm
  • Release Force: 0.2gf
  • Switch Terminals: Solder
