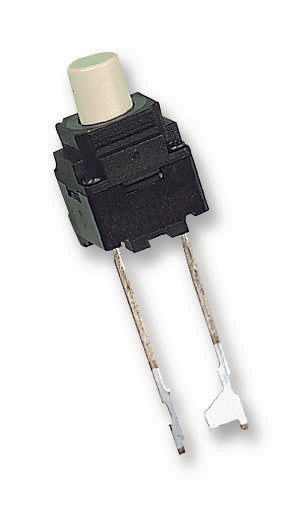

B3WN-6002 Switch, Pcb, SPNO Omron

OMRONSKU:B3WN-6002 Bestelcode:9945423

Prijs:
Actie prijs€1,47

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (835 units)

Documenten en downloads

Omschrijving

OMRON - B3WN-6002 - Tactile Switch, B3WN, Top Actuated, Through Hole, Square Button, 200 gf, 50mA at 12VDC

  • Product Range: B3WN Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: Through Hole
  • Actuator Style: Square Button
  • Actuating Force: 200gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 10mm x 10mm
  • IP Rating: IP67
  • Illumination: Non Illuminated
  • Actuation Type: Top
  • Actuator / Cap Colour: White
  • Contact Configuration: SPST-NO
  • Contact Current DC Max: 50mA
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 12V
  • Contact Voltage DC Nom: 12V
  • External Depth: 8mm
  • External Length / Height: 13mm
  • External Width: 8mm
  • IP / NEMA Rating: IP67
  • Lead Spacing: 17mm
  • Load Current Min: 1mA
  • No. of Mechanical Operations: 100000
  • Operating Force: 1.96N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Panel Cutout Diameter: 4mm
  • Row Pitch: 5mm
  • Switch Terminals: Solder
  • Voltage Rating V DC: 12V
