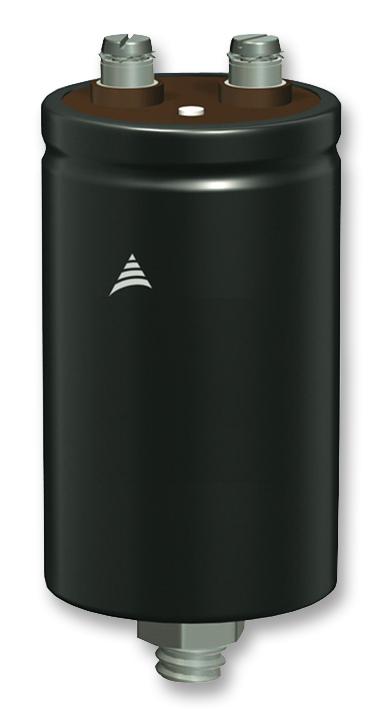

EPCOS - B41580A5220M000 - Electrolytic Capacitor, Screw, 0.22 F, 25 V, ± 20%, Screw, 3000 hours @ 105°C
- Capacitance: 0.22F
- Voltage Rating: 25V
- Product Range: -
- Lifetime @ Temperature: 3000 hours @ 105°C
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Screw
- Diameter: 76.9mm
- Lead Spacing: 31.7mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Height: 105mm
- ESR: 0.0035ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (07-Jul-2017)
- AC Ripple Current @ 100Hz: 20A
- Capacitance Tolerance ±: ± 20%
- External Diameter: 76.9mm
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +105°C
- Ripple Current Temperature: 105°C
