Omschrijving

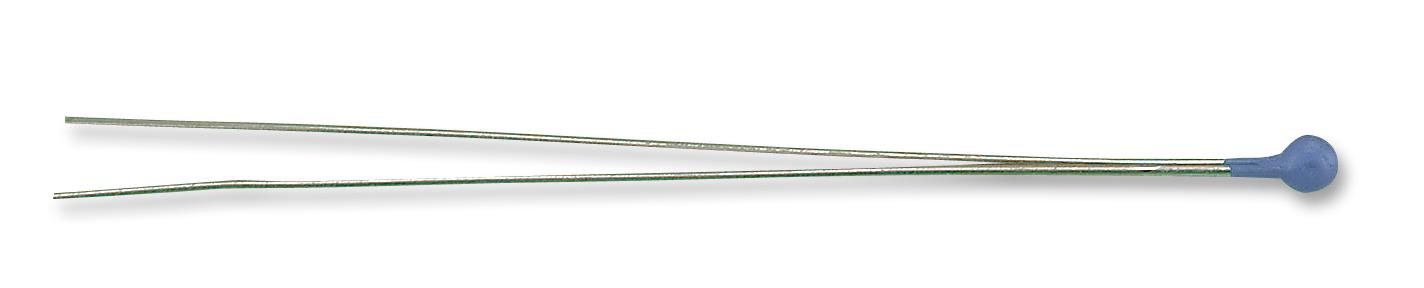

EPCOS - B59008C0090A040 - PTC Thermistor, 250 ohm, 30 VDC, 0 °C to 40 °C, Through Hole, 2 Pins, B59008 Series
- Zero Power Resistance at 25°C: 250ohm
- Thermistor Mounting: Through Hole
- Product Range: B59008 Series
- Operating Voltage Max: 30VDC
- Applications: Limit Temperature Monitoring
- Operating Temperature Min: 0°C
- Operating Temperature Max: 40°C
- SVHC: No SVHC (07-Jul-2017)
- External Depth: 3mm
- External Length / Height: 6mm
- External Width: 3mm
- Lead Diameter: 4mm
- Lead Length: 25mm
- Operating Voltage: 30V
- Resistance @ Temperature: 250ohm
- Resistance @ Trip Temp + Tolerance: 1330ohm
- Resistance @ Trip Temp - Tolerance: 550ohm
- Response Time: 3s
- Thermistor Type: PTC
- Threshold Temperature: 90°C
- Voltage Rating V DC: 30V
