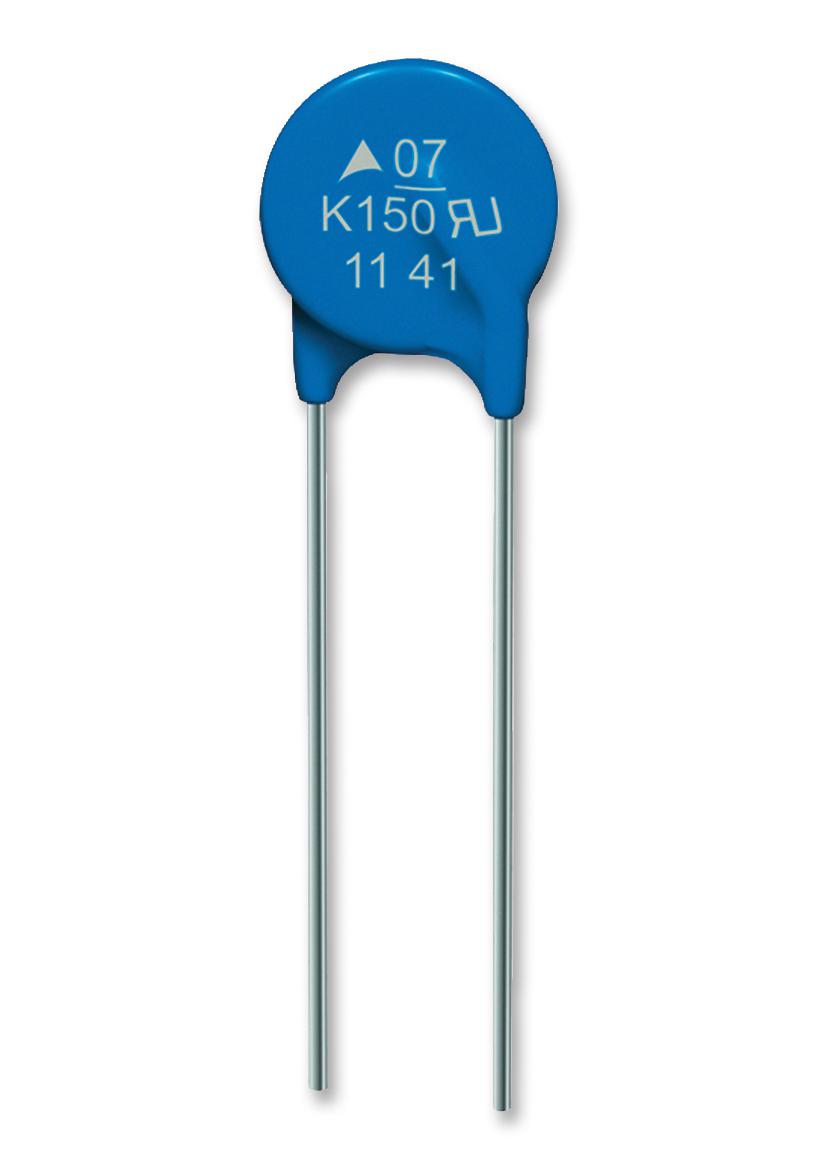

B72207S0421K101 Varistor, 32.0J, 420VAC EPCOS

EPCOSSKU:B72207S0421K101 Bestelcode:1004332

Prijs:
Actie prijs€0,58

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (783 units)

Documenten en downloads

Omschrijving

EPCOS - B72207S0421K101 - TVS Varistor, 420 V, 560 V, StandarD, 1.12 kV, Disc 7mm, Metal Oxide Varistor (MOV)

  • Voltage Rating VAC: 420V
  • Voltage Rating V DC: 560V
  • Product Range: StandarD Series
  • Clamping Voltage Vc Max: 1.12kV
  • Varistor Case Style: Disc 7mm
  • Varistor Type: Metal Oxide Varistor (MOV)
  • Peak Surge Current @ 8/20µs: 1.2kA
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Peak Energy (10/1000uS): 32J
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: CECC, CSA, UL
  • Body Diameter: 9mm
  • Capacitance: 65pF
  • Clamping Voltage: 1.12kV
  • Clamping Voltage @ 8/20µs Max: 1120V
  • External Length / Height: 11.5mm
  • Lead Length: 30mm
  • Operating Temperature Range: -40°C to +85°C
  • Peak Pulse Current IPP @ 8/20µs: 1200A
  • Suppressor Type: Varistor
  • Surge Current: 1.2kA
  • Transient Energy: 32J
  • Varistor Voltage: 680V
  • Varistor Voltage @ 1mA: 612V
  • Varistor Voltage @ 1mA Max: 748V
  • Varistor Voltage Tolerance +: 10%
