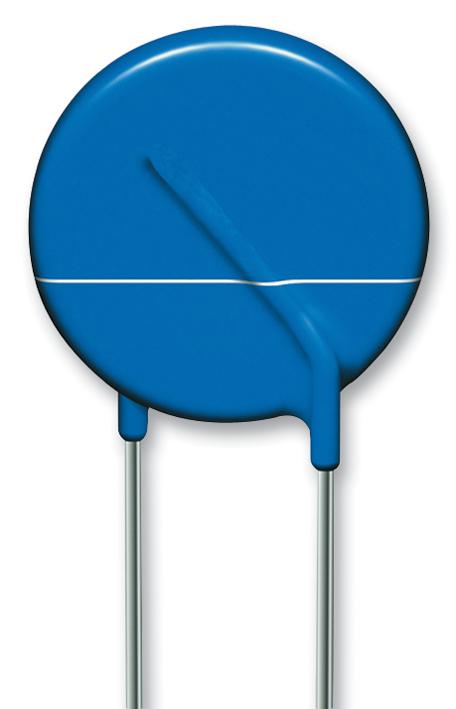

B72214P2301K101 Varistor, 14mm, 300V EPCOS

EPCOSSKU:B72214P2301K101 Bestelcode:1781932

Prijs:
Actie prijs€1,14

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (151 units)

Documenten en downloads

Omschrijving

EPCOS - B72214P2301K101 - TVS Varistor, 300 V, 385 V, AdvanceD-MP, 775 V, Disc 14mm, Metal Oxide Varistor (MOV)

  • Voltage Rating VAC: 300V
  • Voltage Rating V DC: 385V
  • Product Range: AdvanceD-MP Series
  • Clamping Voltage Vc Max: 775V
  • Varistor Case Style: Disc 14mm
  • Varistor Type: Metal Oxide Varistor (MOV)
  • Peak Surge Current @ 8/20µs: 6kA
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Peak Energy (10/1000uS): 140J
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: IEC, UL
  • Body Diameter: 16mm
  • Clamping Voltage: 775V
  • External Depth: 6.1mm
  • External Length / Height: 20mm
  • Lead Diameter: 0.8mm
  • Lead Length: 25mm
  • Lead Spacing: 7.5mm
  • Peak Pulse Current IPP @ 8/20µs: 6000A
  • Suppressor Type: Varistor
  • Surge Current: 6kA
  • Transient Energy: 140J
  • Varistor Voltage: 300V
  • Varistor Voltage @ 1mA: 470V
