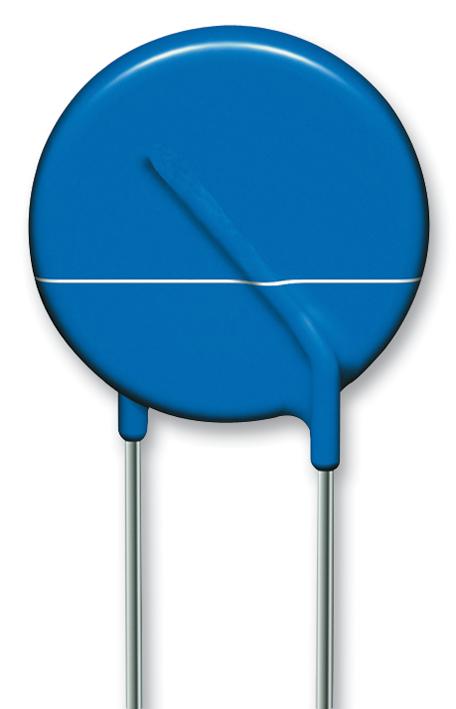

B72220P3271K101 Varistor, 20mm, 275V EPCOS

EPCOSSKU:B72220P3271K101 Bestelcode:1781938

Prijs:
Actie prijs€2,73

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1231 units)

Documenten en downloads

Omschrijving

EPCOS - B72220P3271K101 - TVS Varistor, 275 V, 350 V, SuperioR-MP, 710 V, Disc 20mm, Metal Oxide Varistor (MOV)

  • Voltage Rating VAC: 275V
  • Voltage Rating V DC: 350V
  • Product Range: SuperioR-MP Series
  • Clamping Voltage Vc Max: 710V
  • Varistor Case Style: Disc 20mm
  • Varistor Type: Metal Oxide Varistor (MOV)
  • Peak Surge Current @ 8/20µs: 12kA
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Peak Energy (10/1000uS): 260J
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: IEC, UL
  • Body Diameter: 22.5mm
  • Clamping Voltage: 710V
  • External Depth: 6.5mm
  • External Length / Height: 27mm
  • Height: 27mm
  • Lead Diameter: 1mm
  • Lead Length: 25mm
  • Lead Spacing: 10mm
  • Peak Pulse Current IPP @ 8/20µs: 12000A
  • Suppressor Type: Varistor
  • Surge Current: 12kA
  • Transient Energy: 260J
  • Varistor Voltage: 275V
  • Varistor Voltage @ 1mA: 430V
