B72220P3301K101 Varistor, 20mm, 300V EPCOS

EPCOSSKU:B72220P3301K101 Bestelcode:1781939

Prijs:
Actie prijs€2,53

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (4264 units)

Documenten en downloads

Omschrijving

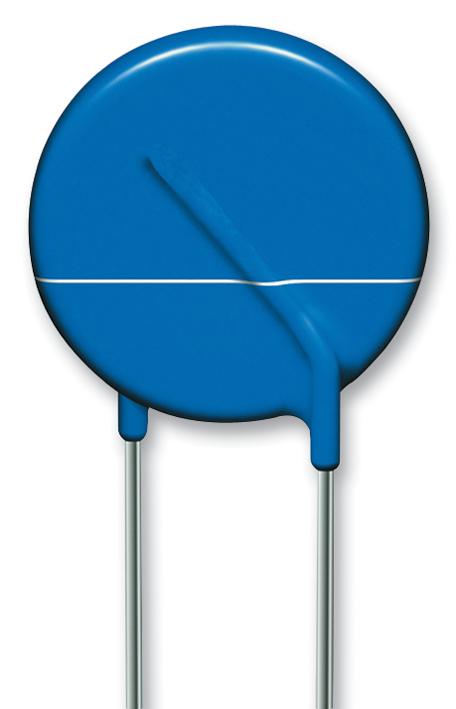

EPCOS - B72220P3301K101 - TVS Varistor, 300 V, 385 V, SuperioR-MP, 775 V, Disc 20mm, Metal Oxide Varistor (MOV)

  • Voltage Rating VAC: 300V
  • Voltage Rating V DC: 385V
  • Product Range: SuperioR-MP Series
  • Clamping Voltage Vc Max: 775V
  • Varistor Case Style: Disc 20mm
  • Varistor Type: Metal Oxide Varistor (MOV)
  • Peak Surge Current @ 8/20µs: 12kA
  • Operating Temperature Min: -
  • Operating Temperature Max: -
  • Peak Energy (10/1000uS): 290J
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: IEC, UL
  • Body Diameter: 22.5mm
  • Clamping Voltage: 775V
  • External Depth: 6.8mm
  • External Length / Height: 27mm
  • Lead Diameter: 1mm
  • Lead Length: 25mm
  • Lead Spacing: 10mm
  • Peak Pulse Current IPP @ 8/20µs: 12000A
  • Suppressor Type: Varistor
  • Surge Current: 12kA
  • Transient Energy: 290J
  • Varistor Voltage: 300V
  • Varistor Voltage @ 1mA: 470V
