B72520T0300K062 Varistor, 1206, 38VDC EPCOS

EPCOSSKU:B72520T0300K062 Bestelcode:8832633

Prijs:
Actie prijs€0,85

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (81515 units)

Documenten en downloads

Omschrijving

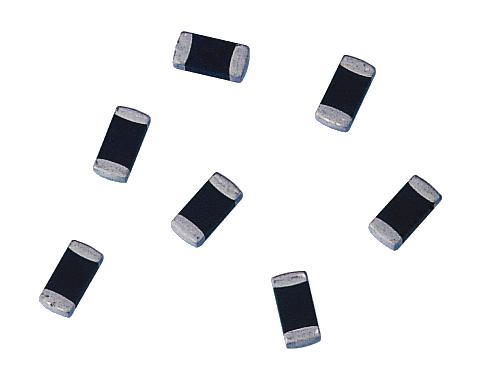

EPCOS - B72520T0300K062 - TVS Varistor, 30 V, 38 V, 77 V, 1206 [3216 Metric], Multilayer Varistor (MLV)

  • Voltage Rating VAC: 30V
  • Voltage Rating V DC: 38V
  • Product Range: -
  • Clamping Voltage Vc Max: 77V
  • Varistor Case Style: 1206 [3216 Metric]
  • Varistor Type: Multilayer Varistor (MLV)
  • Peak Surge Current @ 8/20µs: 200A
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • Peak Energy (10/1000uS): 1.1J
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Capacitance: 500pF
  • Clamping Current Max: 1A
  • Clamping Voltage: 77V
  • Clamping Voltage @ 8/20µs Max: 77V
  • Operating Temperature Range: -55°C to +125°C
  • Peak Pulse Current IPP @ 8/20µs: 200A
  • Power Dissipation Ptot Max: 0.008W
  • Suppressor Type: Varistor
  • Surge Current: 200A
  • Transient Energy: 1.1J
  • Varistor Voltage: 47V
  • Varistor Voltage @ 1mA: 42.3V
  • Varistor Voltage @ 1mA Max: 51.7V
  • Varistor Voltage Tolerance +: 10%
  • Varistor Voltage Tolerance -: 10%
