Omschrijving

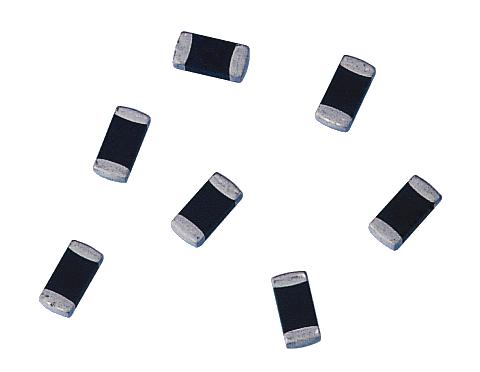

EPCOS - B72590T0170S160 - TVS Varistor, 17 V, 19 V, 59 V, 0402 [1005 Metric], Multilayer Varistor (MLV)
- Voltage Rating VAC: 17V
- Voltage Rating V DC: 19V
- Product Range: -
- Clamping Voltage Vc Max: 59V
- Varistor Case Style: 0402 [1005 Metric]
- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 20A
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 10mJ
- Automotive Qualification Standard: -
- SVHC: No SVHC (07-Jul-2017)
- Capacitance: 33pF
- Clamping Voltage: 59V
- Clamping Voltage @ 8/20µs Max: 59V
- Operating Temperature Range: -40°C to +85°C
- Peak Pulse Current IPP @ 8/20µs: 20A
- Suppressor Type: Varistor
- Surge Current: 20A
- Transient Energy: 10mJ
- Varistor Voltage @ 1mA Max: 32V
- Varistor Voltage Tolerance +: 25%
