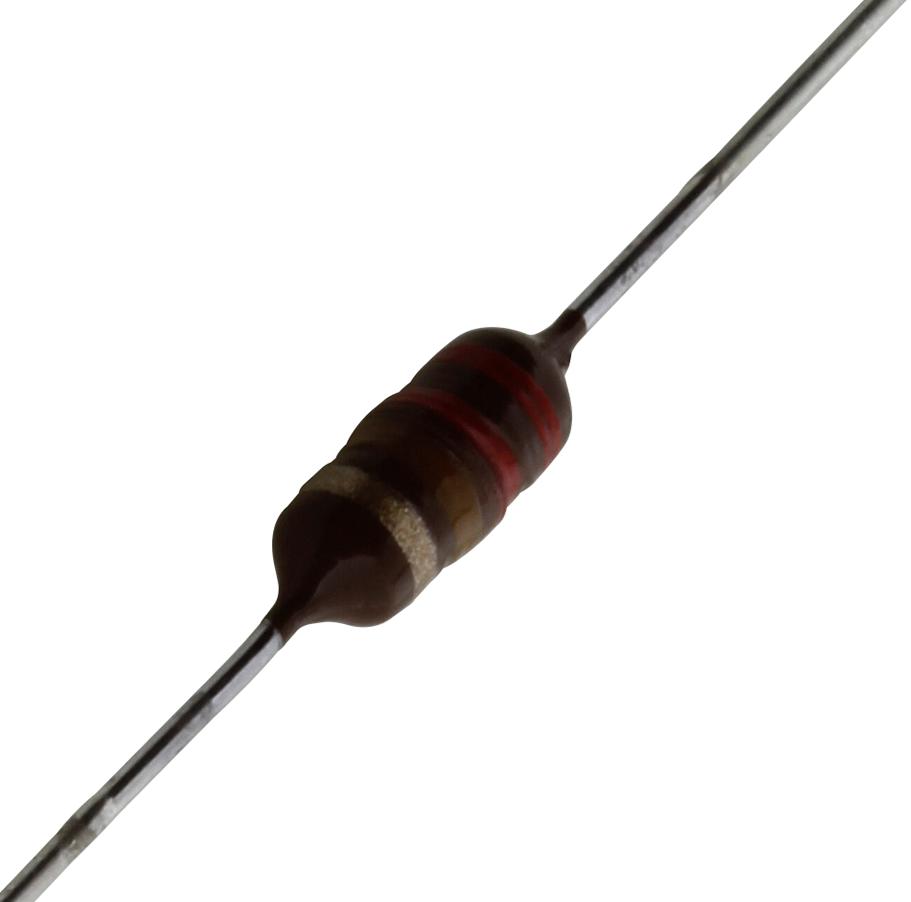

EPCOS - B78108S1225J000 - RF Choke, B78108S BC, 2.2 mH, 80 mA, 34.7 ohm, ± 5%, 1.1 MHz
- Product Range: B78108S BC Series
- Inductance: 2.2mH
- DC Current Rating: 80mA
- DC Resistance Max: 34.7ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 1.1MHz
- SVHC: Lead (27-Jun-2018)
- Body Diameter: 4mm
- Core Material: Ferrite
- Current Rating: 80mA
- External Length / Height: 9.2mm
- Inductance Measurement Frequency: 0.1MHz
- Inductor Case Style: Axial Leaded
- Inductor Type: High Frequency / RF
- Lead Diameter: 0.63mm
- Lead Length: 25mm
- No. of Pins: 2Pins
- Q Factor: 40
- Q Test Frequency: 252kHz
- Tolerance +: 5%
- Tolerance -: 5%
