Omschrijving

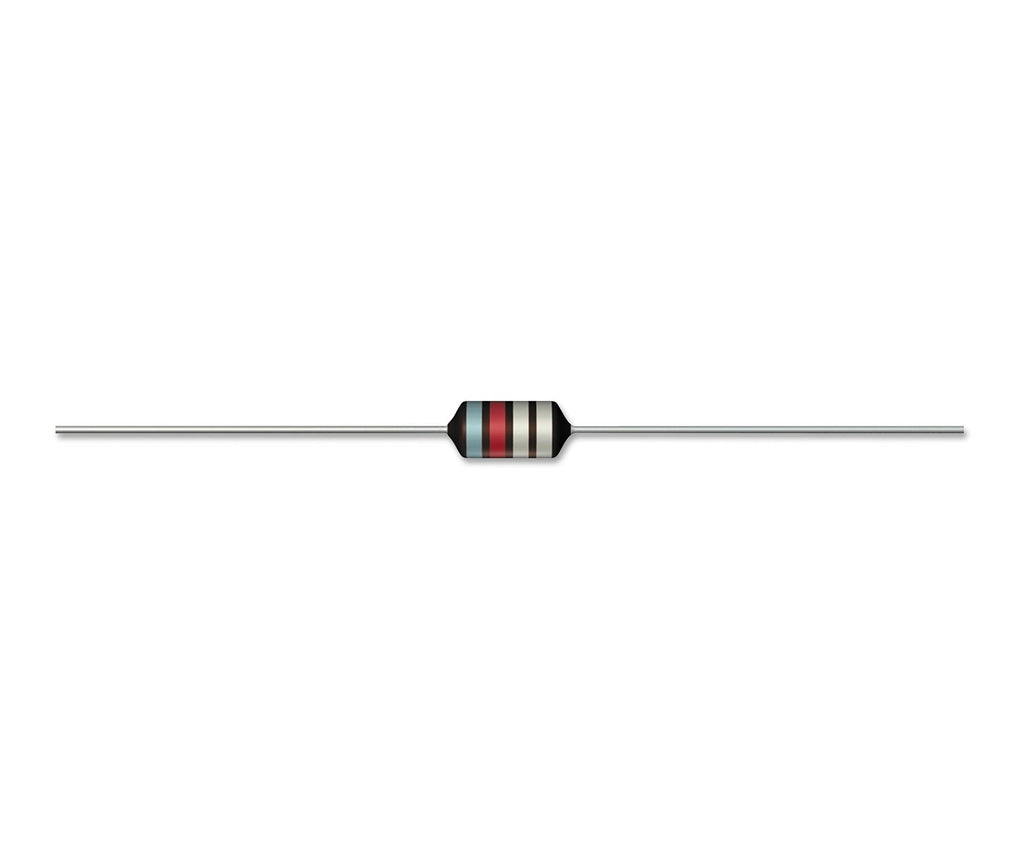

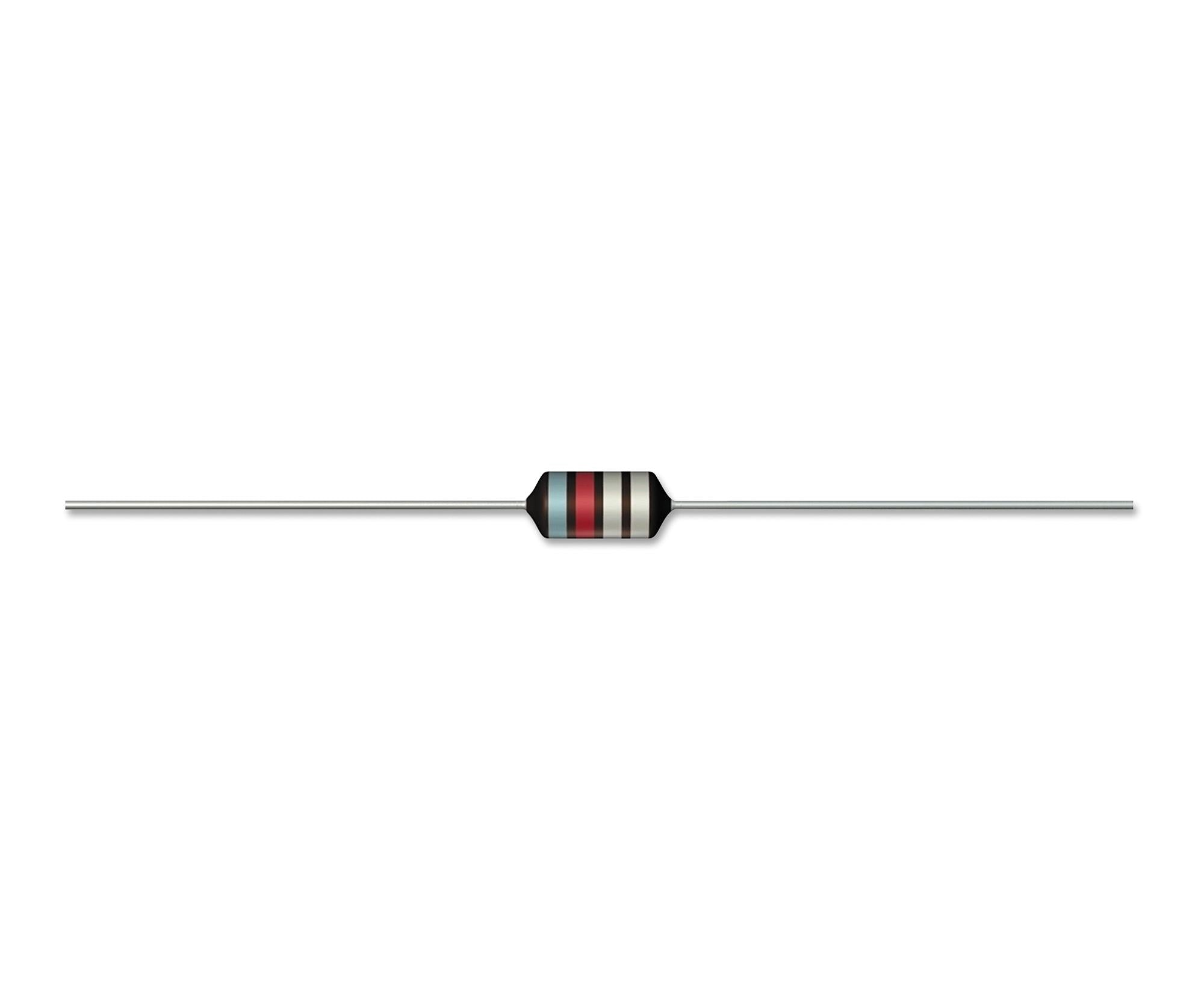

EPCOS - B82144A2103K000 - RF Choke, B82144A LBC, 10 µH, 1.4 A, 0.22 ohm, ± 10%, 60 MHz
- Product Range: B82144A LBC Series
- Inductance: 10µH
- DC Current Rating: 1.4A
- DC Resistance Max: 0.22ohm
- Inductance Tolerance: ± 10%
- Self Resonant Frequency Min: 60MHz
- SVHC: Lead (27-Jun-2018)
- Body Diameter: 5.2mm
- Climatic Category: 55/125/56
- Core Material: Ferrite
- Current Rating: 1400mA
- External Length / Height: 14.8mm
- Inductance Measurement Frequency: 0.1MHz
- Inductor Case Style: Axial Leaded
- Inductor Type: High Frequency / RF
- Lead Diameter: 0.63mm
- No. of Pins: 2Pins
- Q Factor: 60
- Q Test Frequency: 2.52MHz
- Tolerance +: 10%
- Tolerance -: 10%
