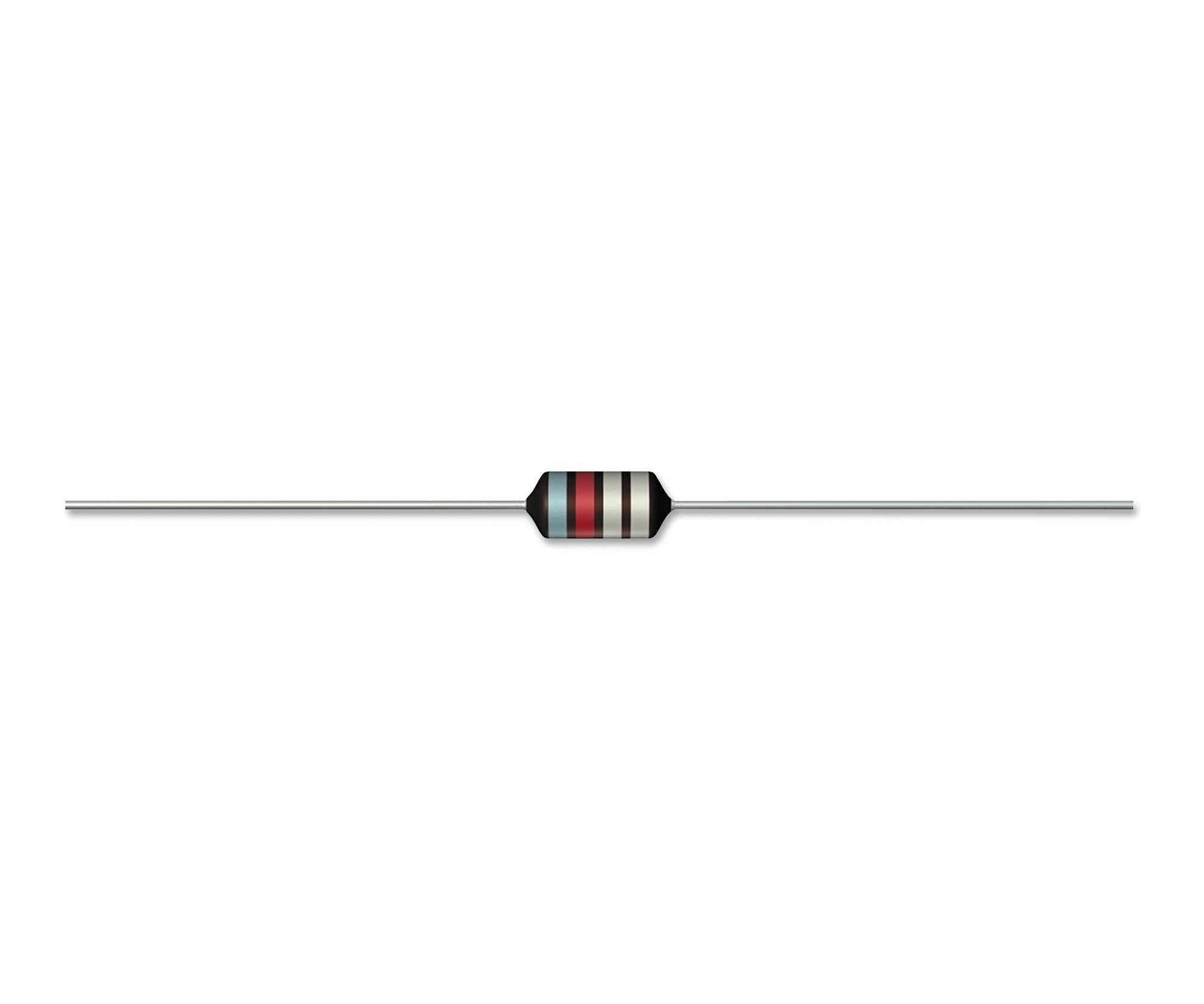

EPCOS - B82144A2226J000 - RF Choke, B82144A LBC, 22 mH, 40 mA, 120 ohm, ± 5%, 260 kHz
- Product Range: B82144A LBC Series
- Inductance: 22mH
- DC Current Rating: 40mA
- DC Resistance Max: 120ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 260kHz
- SVHC: Lead (27-Jun-2018)
- Body Diameter: 5.2mm
- Climatic Category: 55/125/56
- Core Material: Ferrite
- Current Rating: 40mA
- External Length / Height: 14.8mm
- Inductance Measurement Frequency: 0.01MHz
- Inductor Case Style: Axial Leaded
- Inductor Type: High Frequency / RF
- Lead Diameter: 0.63mm
- No. of Pins: 2Pins
- Q Factor: 50
- Q Test Frequency: 79.6kHz
- Tolerance +: 5%
- Tolerance -: 5%
