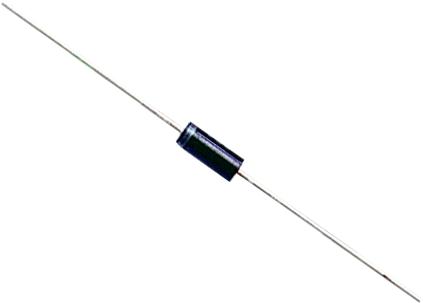

TAIWAN SEMICONDUCTOR - BA159G - Standard Recovery Diode, 1 kV, 1 A, Single, 1.2 V, 250 ns, 30 A
- Repetitive Reverse Voltage Vrrm Max: 1kV
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Forward Voltage VF Max: 1.2V
- Reverse Recovery Time trr Max: 250ns
- Forward Surge Current Ifsm Max: 30A
- Operating Temperature Max: 150°C
- Diode Case Style: DO-41 (DO-204AL)
- No. of Pins: 2Pins
- Product Range: BA159 Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: UL
- Case Temperature Tc @ If: 25°C
- Current If @ Vf: 1A
- Current Ifrm: 1A
- Current Ifsm: 30A
- Current Ir Max: 1A
- Device Marking: BA159G
- Diode Type: Fast Recovery
- External Depth: 2.7mm
- External Diameter: 2.7mm
- External Length / Height: 5.2mm
- External Width: 2.7mm
- Forward Current If Max: 1mA
- Forward Voltage: 1.2V
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -65°C
- No. of Pins: 2 Pin
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Termination Type: Axial Leaded
- Weight: 0.0003kg
