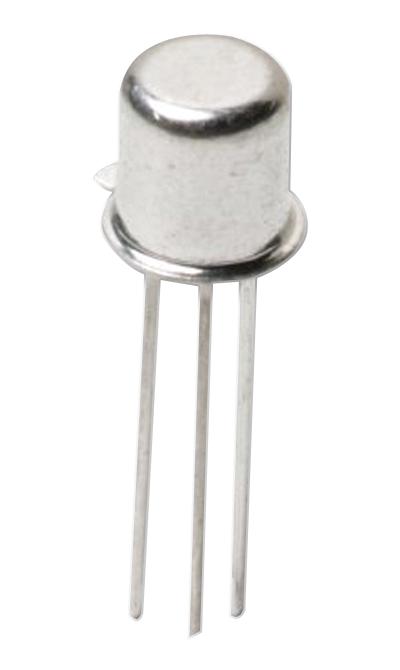

BC109B Transistor, NPN, TO-18 multicomp Pro

MULTICOMP PROSKU:BC109B Bestelcode:9206795

Prijs:
Actie prijs€2,57

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1176 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - BC109B - Bipolar (BJT) Single Transistor, Low Noise, NPN, 25 V, 200 mA, 600 mW, TO-18, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 25V
  • Transition Frequency ft: 150MHz
  • Power Dissipation Pd: 600mW
  • DC Collector Current: 200mA
  • DC Current Gain hFE: 450hFE
  • Transistor Case Style: TO-18
  • No. of Pins: 3Pins
  • Operating Temperature Max: 200°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Collector Emitter Saturation Voltage Vce(on): 250mV
  • Continuous Collector Current Ic Max: 100mA
  • Current Ic Continuous a Max: 100mA
  • Current Ic hFE: 2mA
  • Full Power Rating Temperature: 25°C
  • Gain Bandwidth ft Min: 150MHz
  • Gain Bandwidth ft Typ: 150MHz
  • Hfe Min: 200
  • No. of Transistors: 1
  • Noise Factor Max: 4dB
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +200°C
  • Pin Configuration: a
  • Power Dissipation Ptot Max: 600mW
  • Voltage Vcbo: 30V
