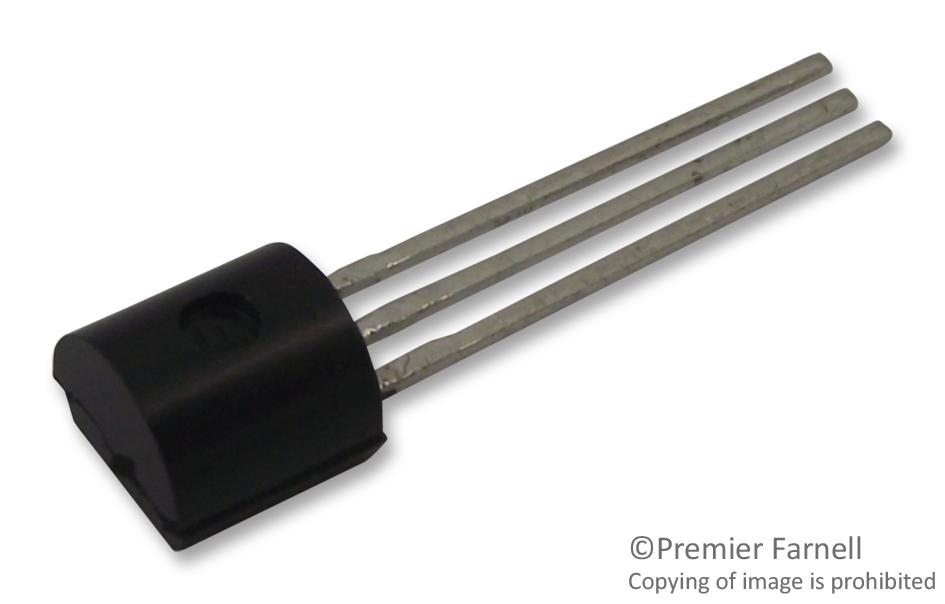

BC557B Transistor, PNP,45V, 100mA, TO-92 multicomp Pro

MULTICOMP PROSKU:BC557B Bestelcode:1574384

Prijs:
Actie prijs€0,24

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (18775 units)

Documenten en downloads

Omschrijving

MULTICOMP PRO - BC557B - Bipolar (BJT) Single Transistor, PNP, 45 V, 100 mA, 625 mW, TO-92, Through Hole

  • Transistor Polarity: PNP
  • Collector Emitter Voltage V(br)ceo: 45V
  • Transition Frequency ft: 150MHz
  • Power Dissipation Pd: 625mW
  • DC Collector Current: 100mA
  • DC Current Gain hFE: 200hFE
  • Transistor Case Style: TO-92
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Collector Emitter Saturation Voltage Vce(on): 650mV
  • Continuous Collector Current Ic Max: 100mA
  • Current Ic Continuous a Max: 100mA
  • Current Ic hFE: 2mA
  • Gain Bandwidth ft Min: 75MHz
  • Gain Bandwidth ft Typ: 150MHz
  • Hfe Min: 75
  • No. of Transistors: 1
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Pin Configuration: d
  • Power Dissipation Ptot Max: 625mW
  • Termination Type: Through Hole
  • Voltage Vcbo: 50V
