Omschrijving

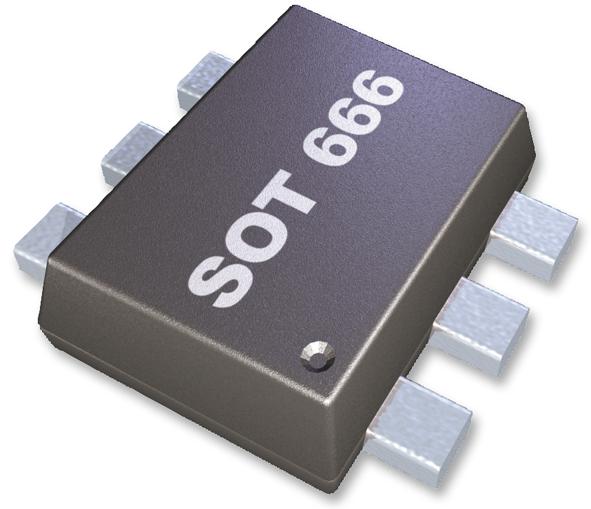

NEXPERIA - BC847BVN,115 - Bipolar Transistor Array, General Purpose, NPN, PNP, 45 V, 100 mA, 200 mW, 200 hFE, SOT-666
- Transistor Polarity: NPN, PNP
- Collector Emitter Voltage V(br)ceo: 45V
- Power Dissipation Pd: 200mW
- DC Collector Current: 100mA
- DC Current Gain hFE: 200hFE
- Transistor Case Style: SOT-666
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 100mV
- Continuous Collector Current Ic Max: 100mA
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 2mA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Typ: 100MHz
- Hfe Min: 200
- Module Configuration: Dual
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 300mW
- Power Dissipation per device Max: 200mW
- SMD Marking: 13
- Voltage Vcbo: 50V
