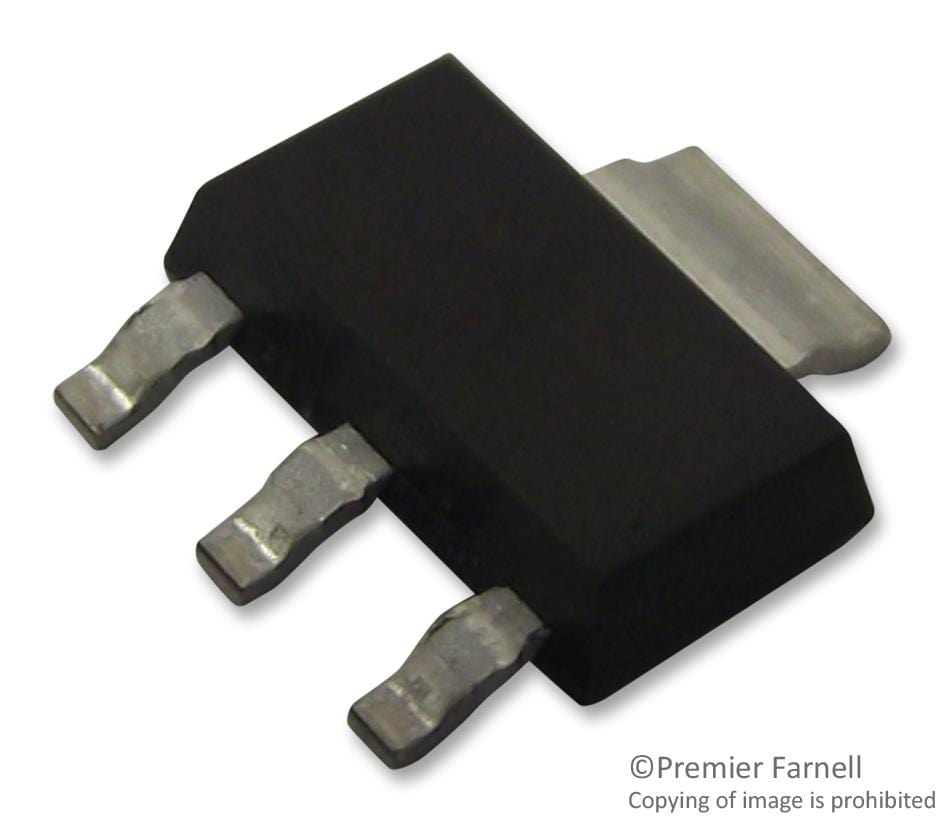

BCP51,115 Transistor, PNP, Sot-223, Reel NEXPERIA

NEXPERIASKU:BCP51,115 Bestelcode:2439050

Prijs:
Actie prijs€0,12

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (33000 units)

Omschrijving

NEXPERIA - BCP51,115 - Bipolar (BJT) Single Transistor, PNP, 45 V, 1 A, 650 mW, SOT-223, Surface Mount

  • Transistor Polarity: PNP
  • Collector Emitter Voltage V(br)ceo: -45V
  • Transition Frequency ft: 145MHz
  • Power Dissipation Pd: 650mW
  • DC Collector Current: -1A
  • DC Current Gain hFE: 63hFE
  • Transistor Case Style: SOT-223
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: BCP51 Series
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Av Current Ic: 1A
  • Collector Emitter Saturation Voltage Vce(on): -500mV
  • Continuous Collector Current Ic Max: 1.5A
  • Current Gain Hfe Max: 250
  • Current Ic Continuous a Max: 1A
  • Current Ic hFE: 150mA
  • Gain Bandwidth ft Typ: 115MHz
  • Hfe Min: 63
  • No. of Transistors: 1
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Power Dissipation Ptot Max: 1.3W
  • SMD Marking: BCP51
  • Termination Type: Surface Mount Device
  • Voltage Vcbo: 45V
