Omschrijving

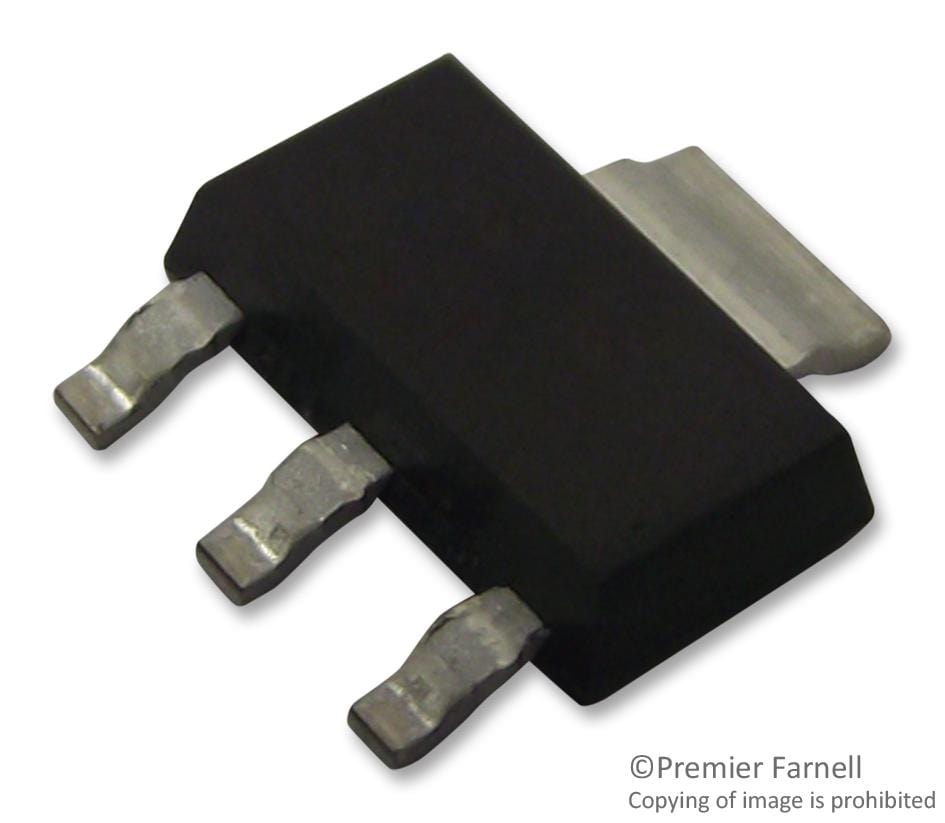

NEXPERIA - BCP53-10,115 - Bipolar (BJT) Single Transistor, PNP, 80 V, 1 A, 650 mW, SOT-223, Surface Mount
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: -80V
- Transition Frequency ft: 145MHz
- Power Dissipation Pd: 650mW
- DC Collector Current: -1A
- DC Current Gain hFE: 63hFE
- Transistor Case Style: SOT-223
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: BCP53 Series
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Av Current Ic: 1A
- Collector Emitter Saturation Voltage Vce(on): -500mV
- Continuous Collector Current Ic Max: 1A
- Current Ic Continuous a Max: 1A
- Current Ic hFE: 15µA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Typ: 115MHz
- Hfe Min: 63
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 1.37W
- Voltage Vcbo: 100V
