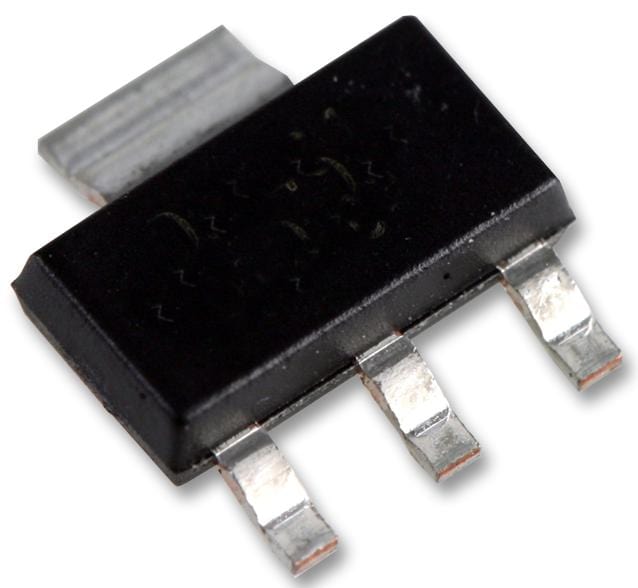

BCP69T1G Transistor, PNP, Sot-223 ONSEMI

ONSEMISKU:BCP69T1G Bestelcode:1459048

Prijs:
Actie prijs€0,93

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (9649 units)

Documenten en downloads

Omschrijving

ONSEMI - BCP69T1G - Bipolar (BJT) Single Transistor, General Purpose, PNP, 20 V, 1 A, 1.5 W, SOT-223, Surface Mount

  • Transistor Polarity: PNP
  • Collector Emitter Voltage V(br)ceo: -20V
  • Transition Frequency ft: 60MHz
  • Power Dissipation Pd: 1.5W
  • DC Collector Current: -1A
  • DC Current Gain hFE: 375hFE
  • Transistor Case Style: SOT-223
  • No. of Pins: 4Pins
  • Operating Temperature Max: 150°C
  • Product Range: BCxxx Series
  • Automotive Qualification Standard: AEC-Q101
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 500mV
  • Complementary Device: BCP68
  • Continuous Collector Current Ic Max: 1A
  • Current Ic Continuous a Max: 1A
  • Current Ic hFE: 1A
  • Gain Bandwidth ft Typ: 60MHz
  • Hfe Min: 60
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +150°C
  • Pin Configuration: B(1), C(2+4), E(3)
  • Power Dissipation Ptot Max: 1.5W
  • Termination Type: Surface Mount Device
  • Voltage Vcbo: 25V
