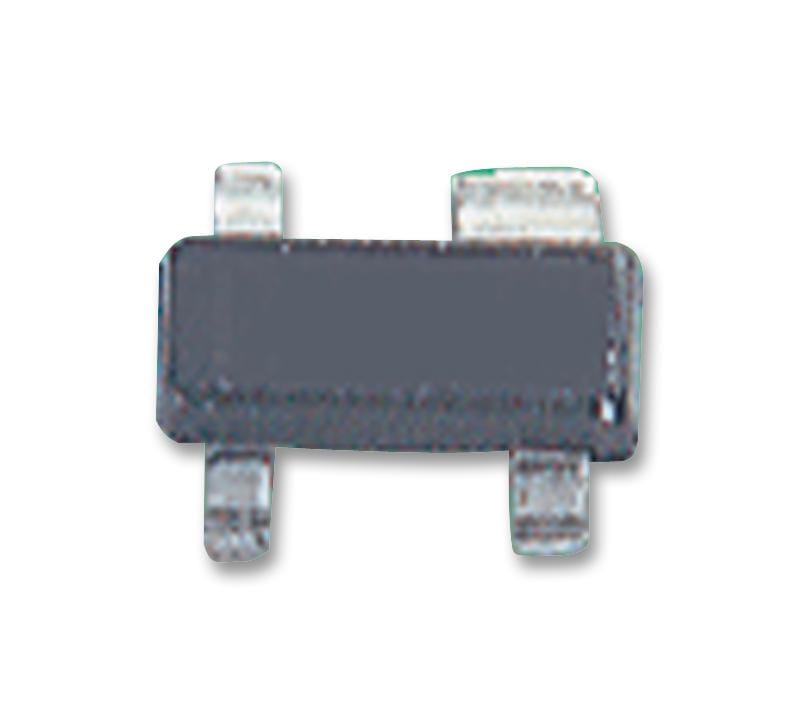

NEXPERIA - BCV62C,215 - Bipolar Transistor Array, Dual PNP, -30 V, -100 mA, 250 mW, 420 hFE, SOT-143B
- Transistor Polarity: Dual PNP
- Collector Emitter Voltage V(br)ceo: -30V
- Power Dissipation Pd: 250mW
- DC Collector Current: -100mA
- DC Current Gain hFE: 420hFE
- Transistor Case Style: SOT-143B
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 650mV
- Continuous Collector Current Ic Max: 100A
- Current Ic @ Vce Sat: 100A
- Current Ic Continuous a Max: 100A
- Current Ic hFE: 2mA
- Gain Bandwidth ft Min: 100MHz
- Gain Bandwidth ft Typ: 250MHz
- Hfe Min: 125
- Module Configuration: Dual
- No. of Transistors: 2
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 300mW
- Voltage Vcbo: 30V
