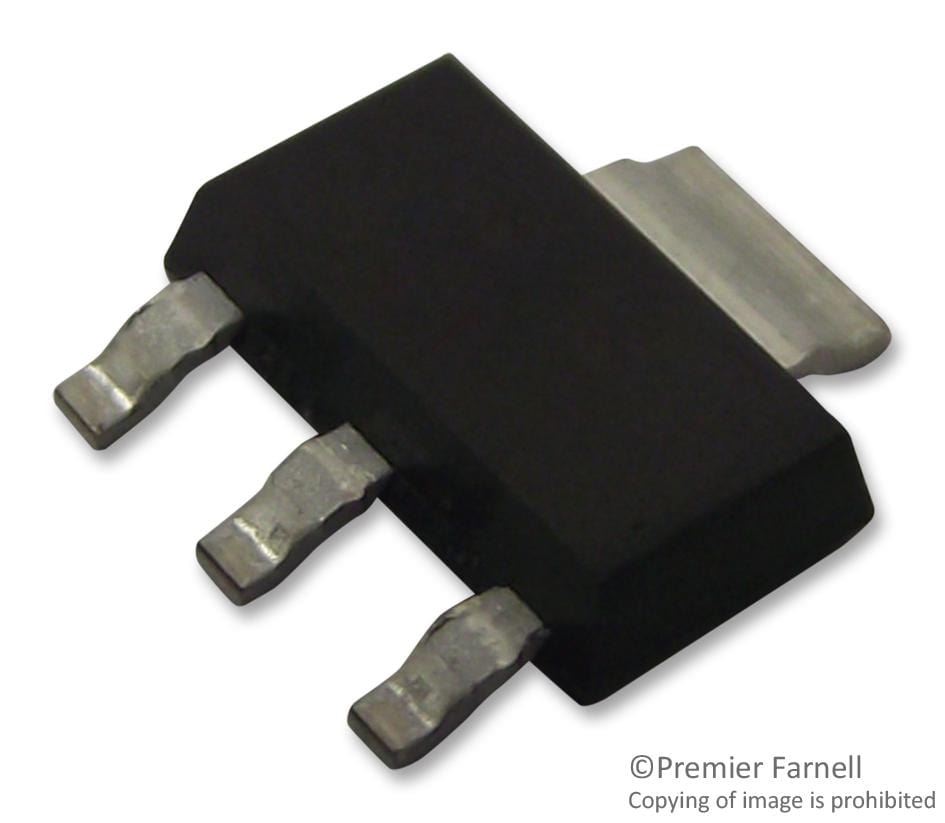

NEXPERIA - BF720,115 - Bipolar (BJT) Single Transistor, NPN, 300 V, 1 A, 1.2 W, SOT-223, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 300V
- Transition Frequency ft: 60MHz
- Power Dissipation Pd: 1.2W
- DC Collector Current: 1A
- DC Current Gain hFE: 50hFE
- Transistor Case Style: SOT-223
- No. of Pins: 4Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Av Current Ic: 1A
- Collector Emitter Saturation Voltage Vce(on): 600mV
- Continuous Collector Current Ic Max: 1A
- Current Ic Continuous a Max: 1A
- Current Ic hFE: 250µA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Typ: 60MHz
- Hfe Min: 50
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 1.2W
- Voltage Vcbo: 300V
