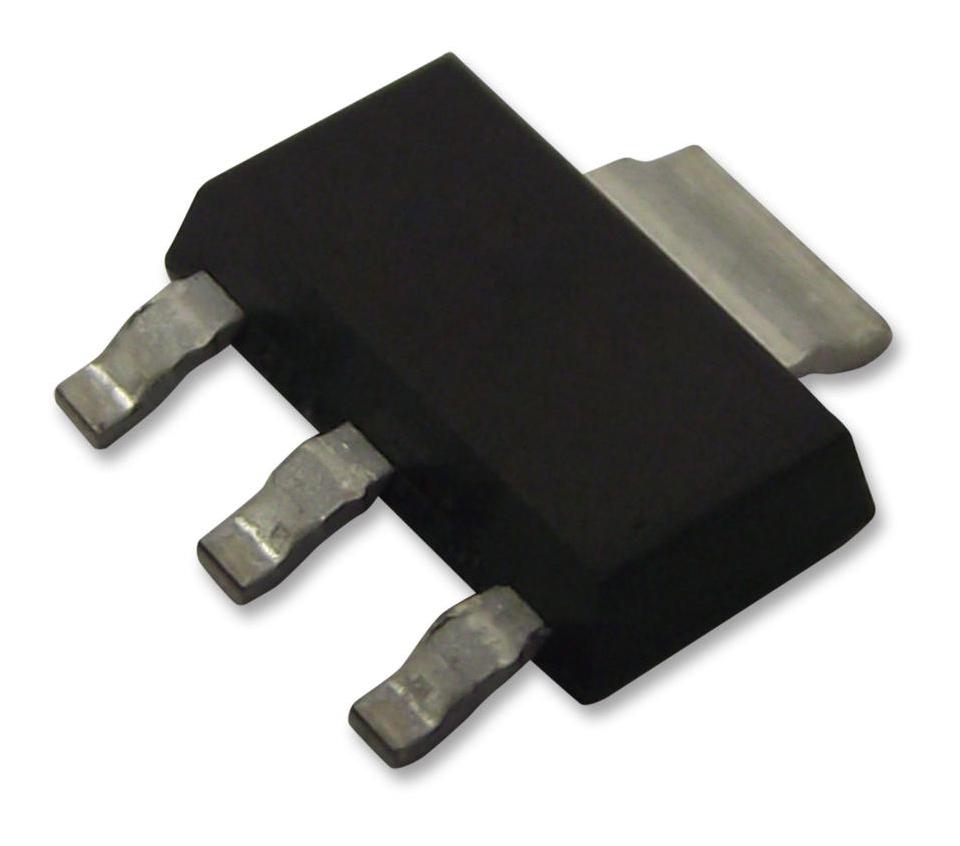

NEXPERIA - BSP51,115 - Bipolar (BJT) Single Transistor, Darlington, NPN, 60 V, 1 A, 1.25 W, SOT-223, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 60V
- Transition Frequency ft: 200MHz
- Power Dissipation Pd: 1.25W
- DC Collector Current: 1A
- DC Current Gain hFE: 2000hFE
- Transistor Case Style: SOT-223
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 1.3V
- Current Ic Continuous a Max: 500mA
- Gain Bandwidth ft Typ: 200MHz
- Hfe Min: 2000
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Termination Type: Surface Mount Device
- Transistor Type: Darlington
