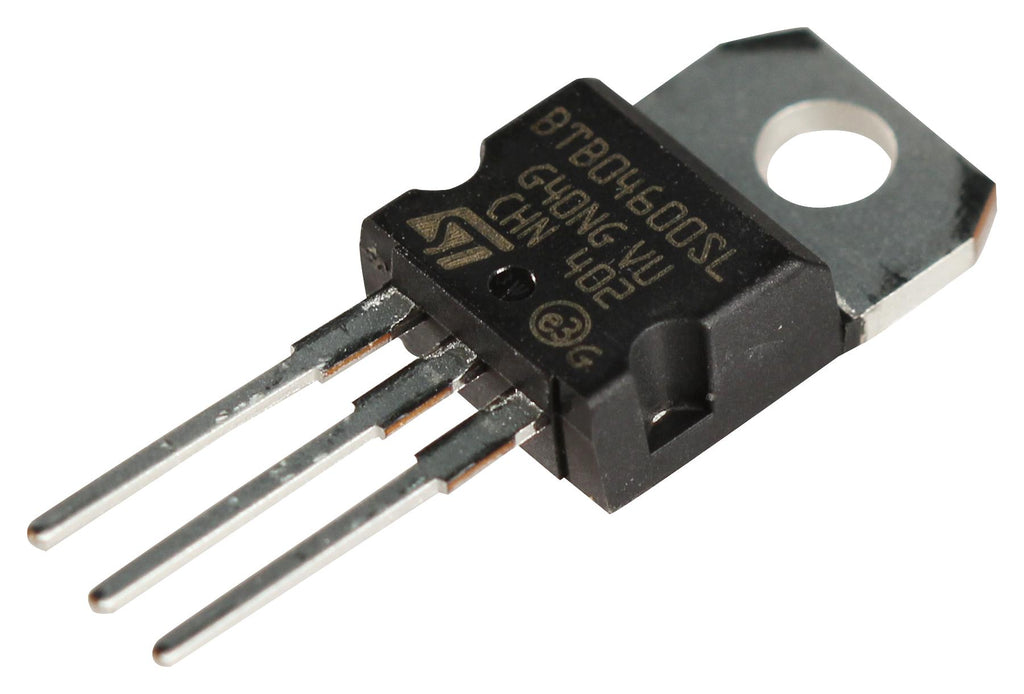

BTB04-600SL Triac, 4A, 600v, TO-220AB STMICROELECTRONICS

STMICROELECTRONICSSKU:BTB04-600SL Bestelcode:9910522

Prijs:
Actie prijs€1,56

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (564 units)

Documenten en downloads

Omschrijving

STMICROELECTRONICS - BTB04-600SL - Triac, 600 V, 4 A, TO-220AB, 1.3 V, 35 A, 15 mA

  • Peak Repetitive Off-State Voltage, Vdrm: 600V
  • On State RMS Current IT(rms): 4A
  • Triac Case Style: TO-220AB
  • Gate Trigger Current Max (QI), Igt: 25mA
  • Gate Trigger Voltage Max Vgt: 1.3V
  • Peak Gate Power: 500mW
  • Peak Non Rep Surge Current Itsm 50Hz: 35A
  • Holding Current Max Ih: 15mA
  • No. of Pins: 3Pins
  • Operating Temperature Max: 125°C
  • Product Range: -
  • MSL: -
  • SVHC: No SVHC (17-Dec-2015)
  • Current Itsm: 35A
  • Current Itsm @ 60Hz: 38A
  • Current t2+g-: 10mA
  • Current t2-g+: 25mA
  • Current t2-g-: 10mA
  • Device Marking: BTB04-600SL
  • Gate Trigger Current Igt (Q1) t2+g+: 10mA
  • Gate Trigger Current Max, Igt: 25mA
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +125°C
  • Repetitive Reverse Voltage Vrrm Max: 600V
  • Thyristor Case: TO-220AB
  • Thyristor Type: Triac
