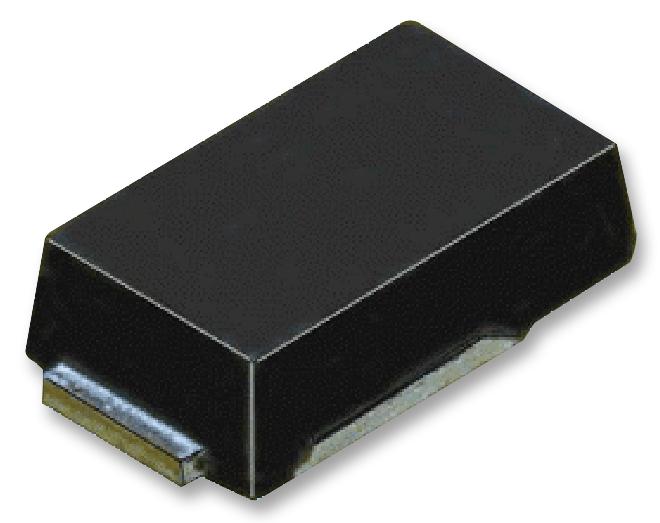

BYG10D-e3/Tr Diode, Standard, 1.5 A, DO-214 Vishay

VISHAYSKU:BYG10D-E3/TR Bestelcode:1612314

Prijs:
Actie prijs€0,89

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1466 units)

Documenten en downloads

Omschrijving

VISHAY - BYG10D-E3/TR - Standard Recovery Diode, Avalanche, 200 V, 1.5 A, Single, 1.15 V, 4 µs, 30 A

  • Repetitive Reverse Voltage Vrrm Max: 200V
  • Forward Current If(AV): 1.5A
  • Diode Configuration: Single
  • Forward Voltage VF Max: 1.15V
  • Reverse Recovery Time trr Max: 4µs
  • Forward Surge Current Ifsm Max: 30A
  • Operating Temperature Max: 150°C
  • Diode Case Style: DO-214AC
  • No. of Pins: 2Pins
  • Product Range: BYG10 Series
  • Automotive Qualification Standard: -
  • Current Ifsm: 30A
  • Diode Type: Standard Recovery
  • Junction Temperature Tj Max: 150°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Reverse Recovery Time trr Typ: 4µs
  • Termination Type: Surface Mount Device
