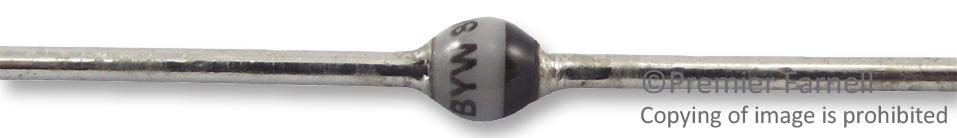

BYW36-Tr Diode, Fast, 2A, 600v Vishay

VISHAYSKU:BYW36-TR Bestelcode:1469376

Prijs:
Actie prijs€0,98

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (17382 units)

Documenten en downloads

Omschrijving

VISHAY - BYW36-TR - Standard Recovery Diode, 600 V, 2 A, Single, 1.1 V, 200 ns, 50 A

  • Repetitive Reverse Voltage Vrrm Max: 600V
  • Forward Current If(AV): 2A
  • Diode Configuration: Single
  • Forward Voltage VF Max: 1.1V
  • Reverse Recovery Time trr Max: 200ns
  • Forward Surge Current Ifsm Max: 50A
  • Operating Temperature Max: 175°C
  • Diode Case Style: SOD-64
  • No. of Pins: 2Pins
  • Product Range: BYW36 Series
  • Automotive Qualification Standard: AEC-Q101
  • SVHC: Lead (15-Jan-2019)
  • Current Ifsm: 50A
  • Diode Type: Fast Recovery
  • Forward Voltage: 1.1V
  • Junction Temperature Tj Max: 175°C
  • No. of Pins: 2 Pin
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Reverse Recovery Time trr Typ: 200ns
  • Termination Type: Axial Leaded
