BZV01/A0620/01 Filter, Inlet, IEC, 6a, SPST Bulgin Limited

BULGIN LIMITEDSKU:BZV01/A0620/01 Bestelcode:9997008

Prijs:
Actie prijs€88,19

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

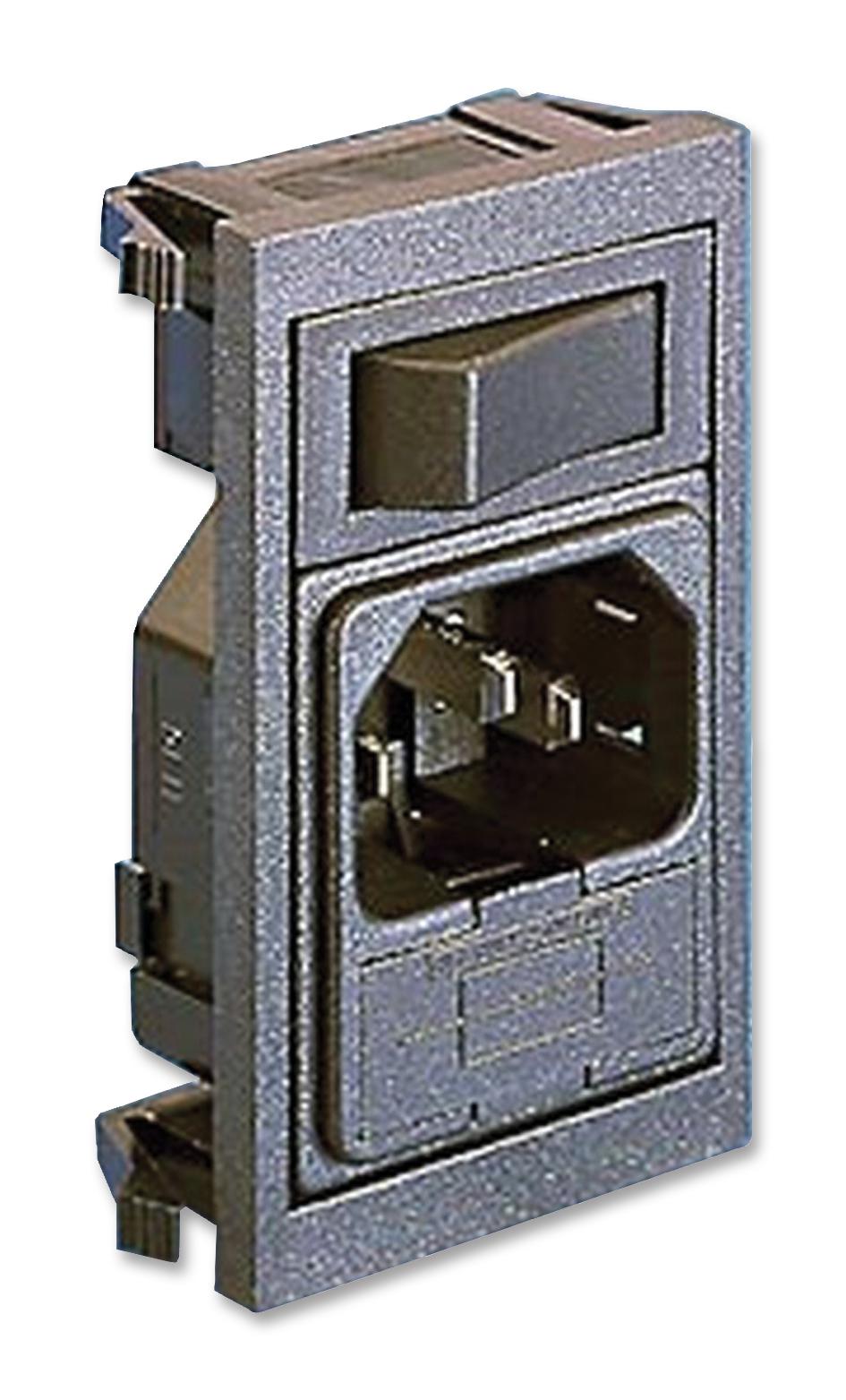

BULGIN LIMITED - BZV01/A0620/01 - Filtered IEC Power Entry Module, IEC C14, General Purpose, 10 A, 250 VAC, 1-Pole Switch

  • Product Range: -
  • Gender: Plug, Receptacle
  • Voltage Rating: 250V
  • Current Rating: 6A
  • Connector Mounting: Panel Mount
  • Contact Termination Type: Quick Connect
  • SVHC: No SVHC (27-Jun-2018)
  • Approval Bodies: CSA, SEMKO, UL, VDE
  • Behind Panel Depth: 58mm
  • Capacitance: 0.015µF
  • Capacitance X: 0.015µF
  • Capacitance Y: 2200pF
  • Connector Type: Power Entry
  • External Depth: 58mm
  • External Length / Height: 35mm
  • External Width: 57mm
  • Filter Terminals: Quick Connect
  • Filter Type: IEC, Mains
  • Fuse Size Held: 5mm x 20mm
  • Inductance: 0.7mH
  • Inductance Min: 700µH
  • Leakage Current: 500µA
  • Leakage Current Max: 500µA
  • No. of Fuses: 1Fuses
  • No. of Inductors: 2
  • No. of Phases: Single Phase
  • No. of X Type Capacitors: 1
  • No. of Y Type Capacitors: 2
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Panel Cutout Depth: 56.6mm
  • Panel Cutout Width: 34.4mm
  • Panel Thickness Max: 3mm
  • Panel Thickness Min: 1.5mm
  • Supply Frequency Max: 400Hz
  • Supply Frequency Min: 50Hz
  • Switch Action: SPST
  • Voltage Rating VAC: 250V
