C1250ANTAA Rocker Switch, DPST, I/O Arcolectric (Bulgin Limited)

ARCOLECTRIC (BULGIN LIMITED)SKU:C1250ANTAA Bestelcode:480344

Prijs:
Actie prijs€8,06

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (303 units)

Documenten en downloads

Omschrijving

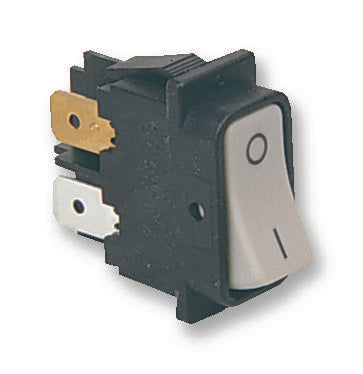

ARCOLECTRIC (BULGIN LIMITED) - C1250ANTAA - Rocker Switch, Off-On, DPST, Non Illuminated, Panel Mount, Grey, 1250

  • Illumination: Non Illuminated
  • Contact Configuration: DPST
  • Switch Operation: Off-On
  • Actuator / Cap Colour: Grey
  • Switch Mounting: Panel
  • Contact Current Max: 16A
  • Contact Voltage AC Nom: 400V
  • Contact Voltage DC Nom: 30V
  • Product Range: 1250 Series
  • SVHC: No SVHC (27-Jun-2018)
  • Bezel Depth: 13.1mm
  • Bezel Width: 23.8mm
  • Colour: Black Body, Grey Actuator
  • Contact Current @ Contact Voltage AC Max: 10A
  • Contact Current AC Max: 75A
  • Contact Current DC Max: 1A
  • Contact Resistance: 10mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 30V
  • Insulation Resistance: 20Mohm
  • No. of Electrical Operations: 10000
  • No. of Mechanical Operations: 50000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: 0°C
  • Panel Cutout Width: 26.2mm
  • Panel Cutout length: 12.4mm
  • Panel Thickness Max: 0.75mm
  • Tab Blade Thickness: 0.8mm
  • Tab Width: 6.3mm
