C1750HOAAC Switch, DPST Arcolectric (Bulgin Limited)

ARCOLECTRIC (BULGIN LIMITED)SKU:C1750HOAAC Bestelcode:140621

Prijs:
Actie prijs€17,37

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (49 units)

Documenten en downloads

Omschrijving

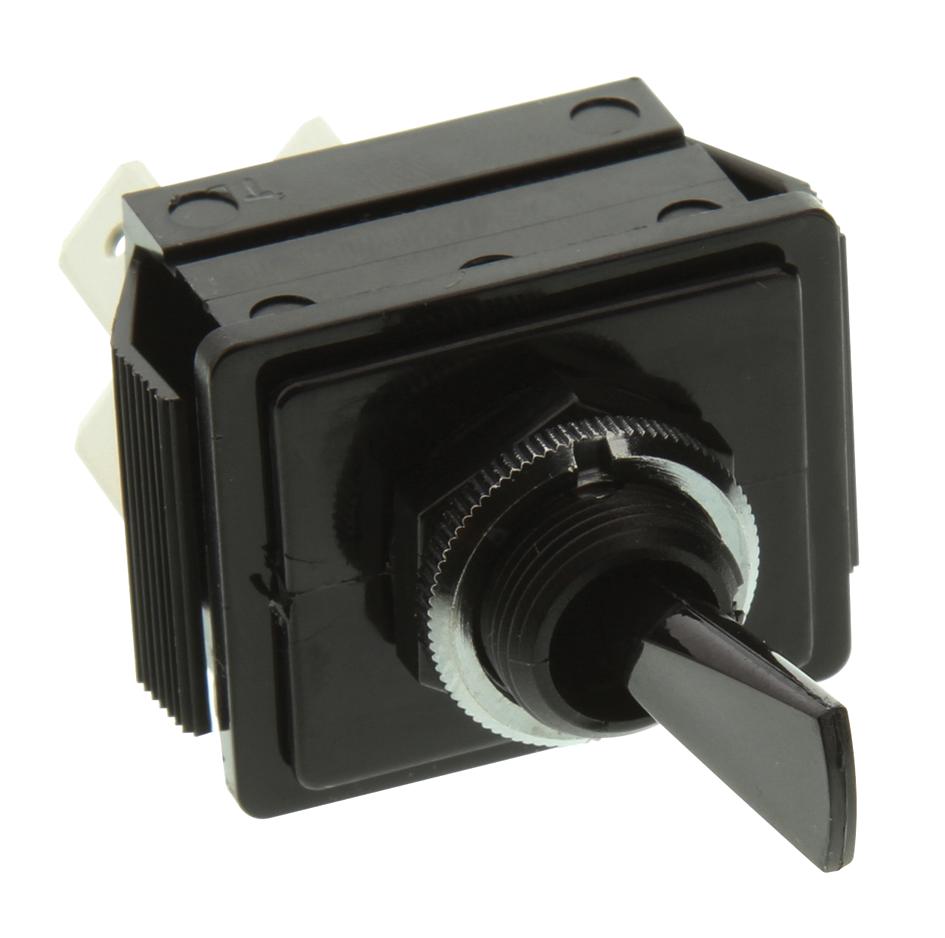

ARCOLECTRIC (BULGIN LIMITED) - C1750HOAAC - Toggle Switch, Off-On, DPST, Non Illuminated, 1750, Panel Mount, 16 A

  • Switch Operation: Off-On
  • Contact Configuration: DPST
  • Illumination: Non Illuminated
  • Product Range: 1750 Series
  • Contact Current Max: 16A
  • Switch Mounting: Panel
  • Contact Voltage AC Nom: 250V
  • Switch Terminals: Quick Connect, Solder
  • Contact Voltage DC Nom: -
  • SVHC: No SVHC (27-Jun-2018)
  • Actuation Type: Flat Lever
  • Bush Thread Length: 10mm
  • Contact Current @ Contact Voltage AC Max: 10A
  • Contact Current @ Contact Voltage DC Max: 20A
  • Contact Current AC Max: 16A
  • Contact Current DC Max: 20A
  • Contact Current Rating: 16A
  • Contact Resistance: 100mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 24V
  • External Depth: 18mm
  • External Length / Height: 32.5mm
  • External Width: 25.4mm
  • Height: 32.5mm
  • Inductive Current Rating: 4A
  • Lever Length: 17.8mm
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: 0°C
  • Panel Cutout Diameter: 12.7mm
  • Resistive Current Rating: 16A
  • Tab Width: 6.3mm
  • Thread Size: 15/32" x 32 NS
