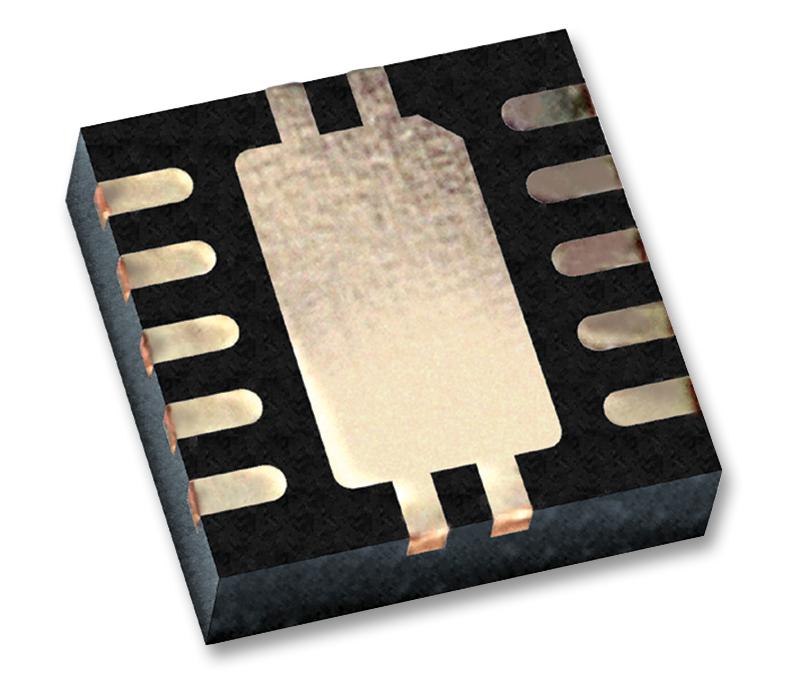

SILICON LABS - C8051F300-GM - 8 Bit MCU, Mixed Signal, C8051 Family C8051F30x Series Microcontrollers, 25 MHz, 8 KB, 11 Pins
- Product Range: C8051 Family C8051F30x Series Microcontrollers
- CPU Speed: 25MHz
- Program Memory Size: 8KB
- RAM Memory Size: 256Byte
- No. of Pins: 11Pins
- MCU Case Style: MLP
- No. of I/O's: 8I/O's
- Embedded Interface Type: I2C, UART
- Supply Voltage Min: 2.7V
- Supply Voltage Max: 3.6V
- MCU Family: C8051
- MCU Series: C8051F30x
- Automotive Qualification Standard: -
- MSL: -
- Clock Frequency: 25MHz
- Controller Family/Series: C8051F30x
- Flash Memory Size: 8KB
- IC Generic Number: 8051
- Lead Spacing: 0.5mm
- Logic Function Number: 8051
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: UART, SMBus
- No. of ADC Inputs: 8
- No. of PWM Channels: 3
- No. of Timers: 3
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, Comparator, RTC
- Program Memory Size: 8KB
- RAM Size: 256Byte
- Row Pitch: 3mm
- Supply Voltage Range: 2.7V to 3.6V
