C90-3102R10SL-3P Socket, Chassis, 3WAY Harwin

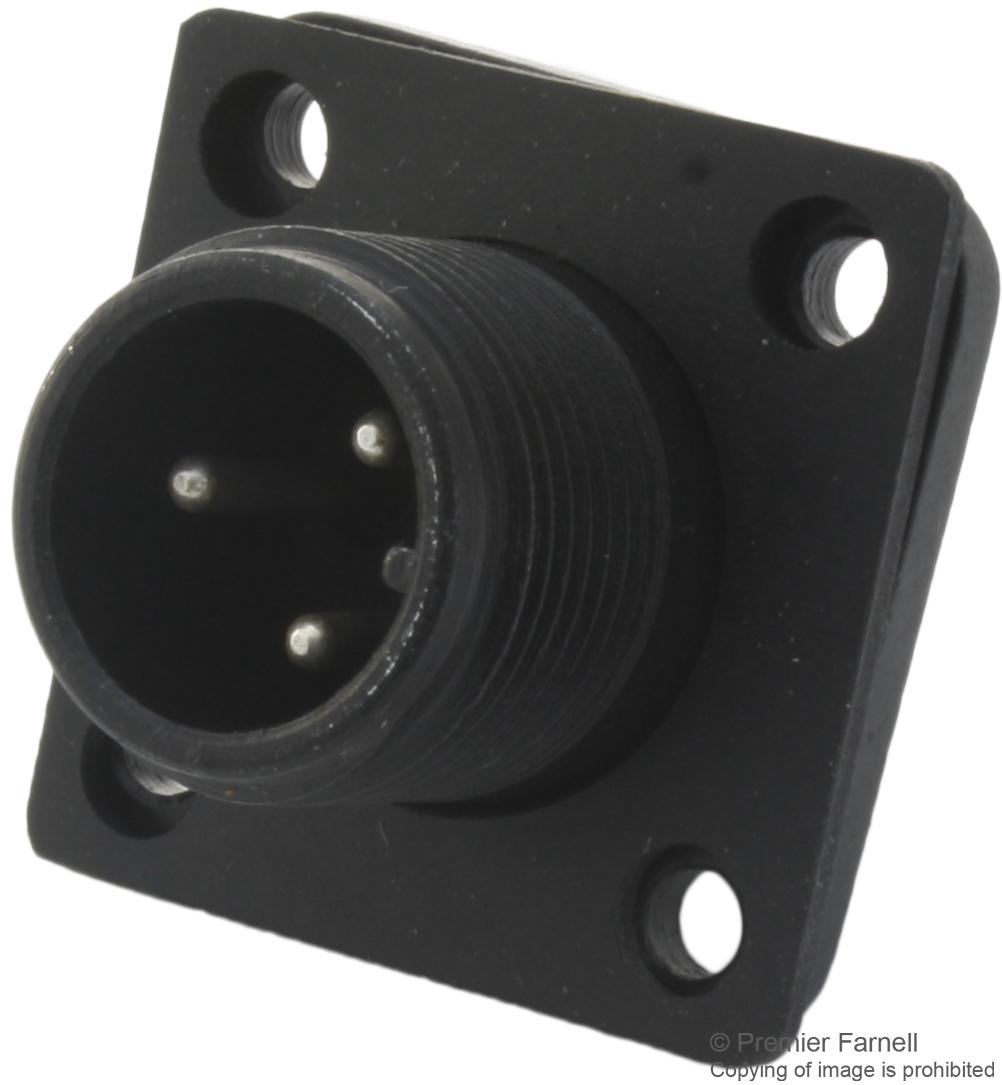

HARWIN - C90-3102R10SL-3P - Circular Connector, Panel Mount Receptacle, 3 Contacts, Solder Pin, Aluminium Alloy Body

• Product Range: -
• Circular Connector Shell Style: Panel Mount Receptacle
• No. of Contacts: 3Contacts
• Circular Contact Type: Solder Pin
• Coupling Style: -
• Connector Body Material: Aluminium Alloy Body
• Connector Body Plating: -
• Contact Material: Copper Alloy
• Contact Plating: Silver
• SVHC: No SVHC (15-Jan-2019)
• Colour: Black
• Connector Insert Type: 10SL-3
• Connector Mounting: Panel Mount
• Connector Shell Size: 10SL
• Connector Type: Circular Industrial
• Contact Gender: Pin
• Contact Plating: Silver Plated Contacts
• Contact Termination: Solder
• Contact Termination Type: Solder
• Current Rating: 13A
• Gender: Receptacle
• Insert Arrangement: 10SL-3
• Insulation Resistance: 5000Mohm
• No. of Mating Cycles: 500
• Operating Temperature Max: 125°C
• Operating Temperature Min: -55°C
• Voltage Rating V DC: 700V
• Voltage Rating VAC: 500V
