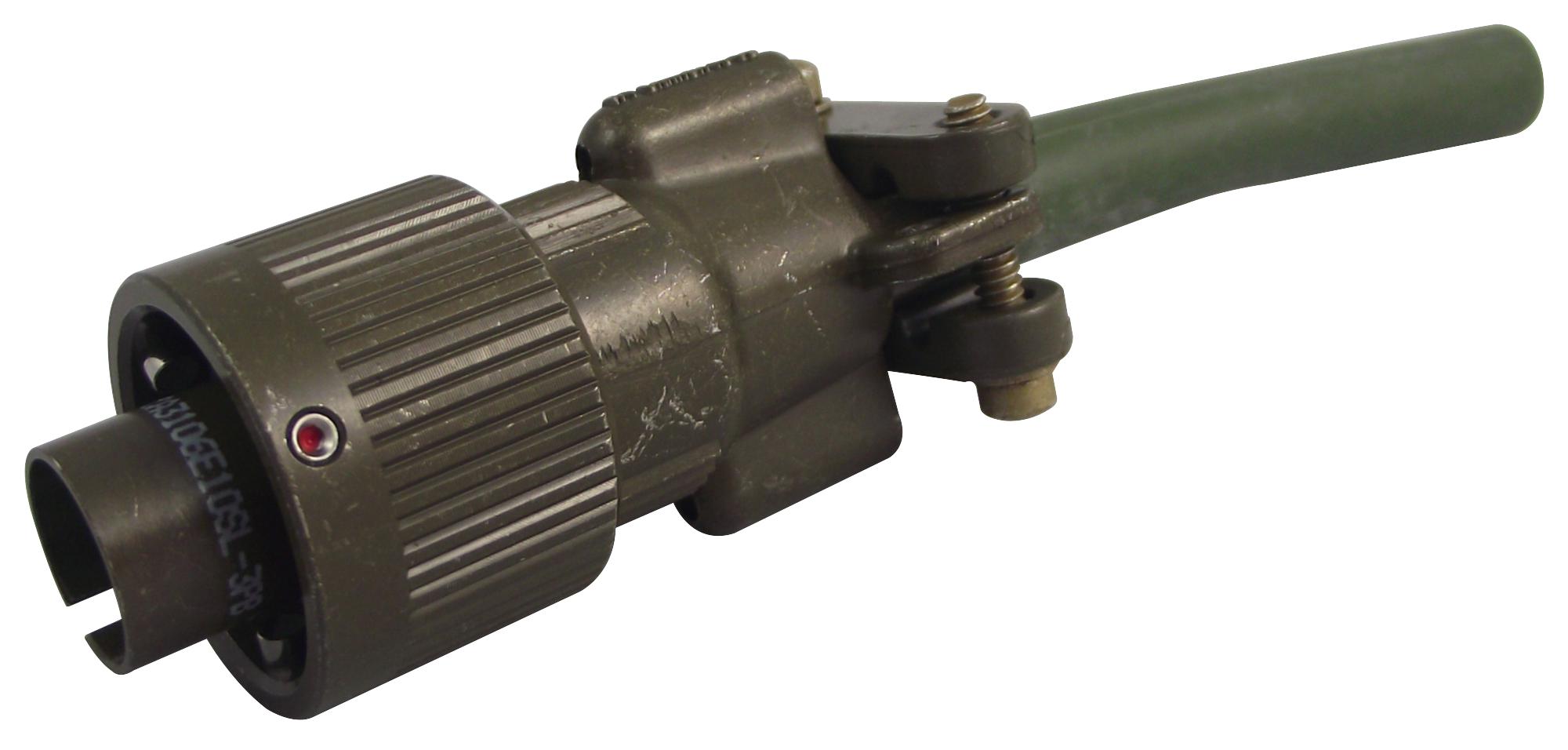

CA3106E10SL-3PB Plug, Free, 3WAY ITT Cannon

ITT CANNONSKU:CA3106E10SL-3PB Bestelcode:3905950

Prijs:
Actie prijs€54,68

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (56 units)

Documenten en downloads

Omschrijving

ITT CANNON - CA3106E10SL-3PB - Circular Connector, CA-B, Straight Plug, 3 Contacts, Solder Pin, Reverse Bayonet, 10SL-3

  • Product Range: CA-B Series
  • Circular Connector Shell Style: Straight Plug
  • No. of Contacts: 3Contacts
  • Circular Contact Type: Solder Pin
  • Coupling Style: Reverse Bayonet
  • Insert Arrangement: 10SL-3
  • Connector Body Material: Aluminium Alloy Body
  • Connector Body Plating: Olive Drab Chromate over Cadmium
  • Contact Material: Copper Alloy
  • Contact Plating: Silver
  • Insert Rotation: N
  • Service Class: Environmentally Sealed
  • Equivalent Military Specification: MIL-DTL-5015 Series
  • Body Plating: Olive Drab Chromate
  • Current Rating: 13A
  • IP / NEMA Rating: IP67
  • Insulation Resistance: 5000Mohm
  • No. of Mating Cycles: 100
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Size: 16
  • Standard: MIL-C-5015
  • Voltage Rating V DC: 250V
  • Voltage Rating VAC: 200V
  • Wire Size AWG Max: 16AWG
  • Wire Size AWG Min: 20AWG
  • Working Voltage: 500V
