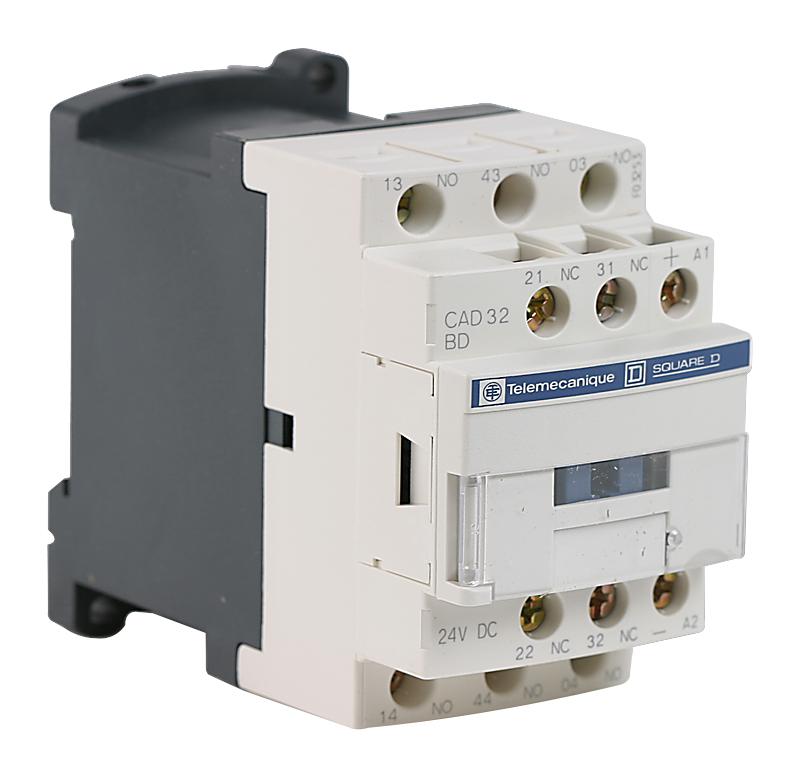

SCHNEIDER ELECTRIC - CAD32BD - General Purpose Relay, CAD32 Series, Power, 3PST-NO, DPST-NC, 24 VDC, 10 A
- Contact Configuration: 3PST-NO, DPST-NC
- Coil Voltage: 24VDC
- Contact Current: 10A
- Product Range: CAD32 Series
- Relay Mounting: DIN Rail
- Coil Type: DC
- Contact Voltage VAC: 690VAC
- Relay Terminals: Screw
- Contact Voltage VDC: 24V
- Contact Material: -
- Coil Resistance: -
- SVHC: No SVHC (15-Jan-2018)
- Coil Voltage VDC Nom: 24V
- Contact Current Max: 10A
- Contact Voltage DC Nom: 690V
- External Depth: 86mm
- External Height: 77mm
- External Width: 45mm
- Nom Operating Power: 5.4W
- Operating Temperature Max: 60°C
- Relay Type: Power
