Omschrijving

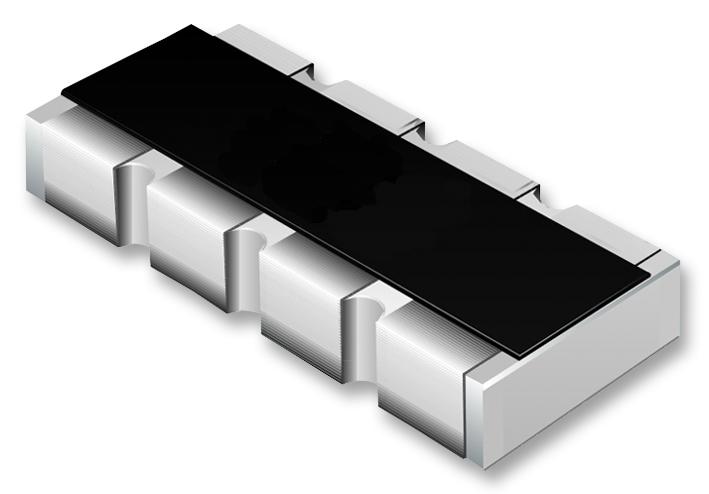

BOURNS - CAT16-220J4LF - Fixed Network Resistor, 22 ohm, Isolated, 4 Resistors, 1206 [3216 Metric], Concave, ± 5%
- Resistance: 22ohm
- Product Range: CAT16 Series
- No. of Elements: 4Elements
- Network Circuit Type: Isolated
- Resistor Case Style: 1206 [3216 Metric]
- No. of Pins: 8Pins
- Voltage Rating: 50V
- Power Rating per Element: 62mW
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 250ppm/°C
- Automotive Qualification Standard: -
- SVHC: Lead (15-Jan-2019)
- External Depth: 1.6mm
- External Length / Height: 0.5mm
- External Width: 3.2mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Power Rating: 62.5mW
- Resistance R1: 22ohm
- Resistor Element Material: Thick Film
- Resistor Mounting: Surface Mount Device
