Documenten en downloads
Omschrijving

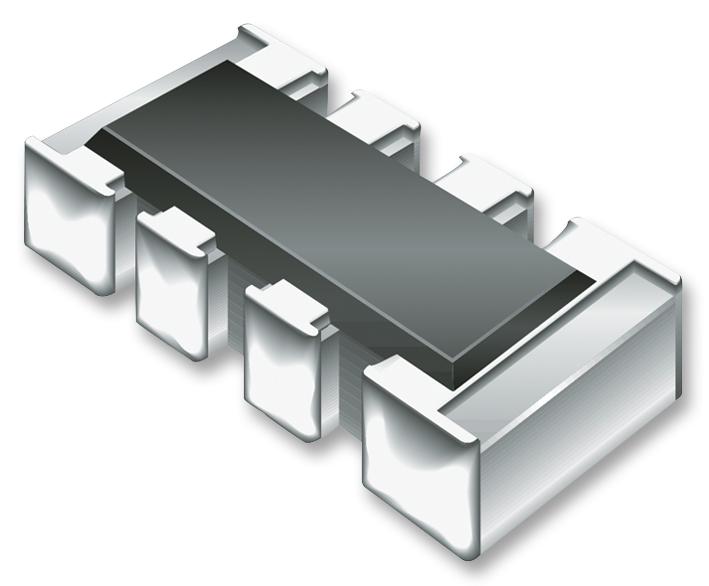

BOURNS - CAY10-470J4LF - Fixed Network Resistor, 47 ohm, Isolated, 4 Resistors, 0804 [2010 Metric], Convex, ± 5%
- Resistance: 47ohm
- Product Range: CAY10 Series
- No. of Elements: 4Elements
- Network Circuit Type: Isolated
- Resistor Case Style: 0804 [2010 Metric]
- No. of Pins: 8Pins
- Voltage Rating: 25V
- Power Rating per Element: 63mW
- Resistance Tolerance: ± 5%
- Temperature Coefficient: ± 250ppm/°C
- Automotive Qualification Standard: -
- SVHC: Lead (15-Jan-2019)
- External Depth: 1mm
- External Length / Height: 0.35mm
- External Width: 2mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Power Rating: 125mW
- Resistance R1: 47ohm
- Resistor Element Material: Thick Film
- Resistor Mounting: Surface Mount Device
