Omschrijving

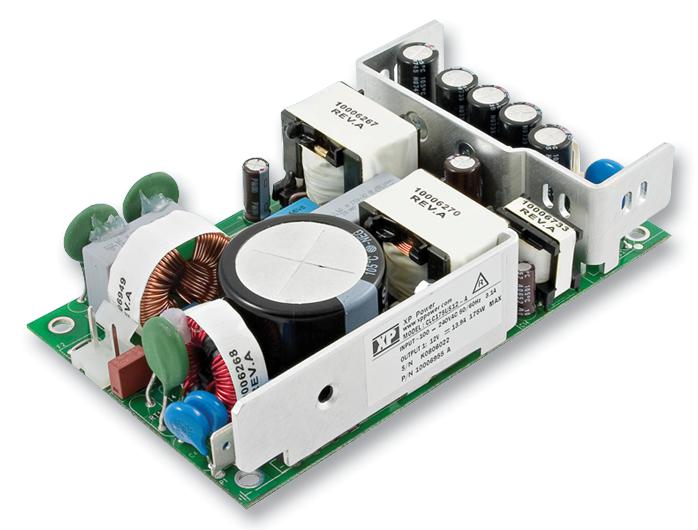

XP POWER - CLC175US24 - AC/DC Open Frame Power Supply (PSU), ITE, 1 Output, 175W @ 10CFM, 85V AC to 264V AC
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): -
- Power Rating (Forced Cooling): 175W @ 10CFM
- Input Voltage VAC: 85V AC to 264V AC
- Power Supply Output Type: Adjustable, Fixed
- Output Voltage - Output 1: 24V
- Output Current - Output 1: 6.9A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: -
- SVHC: No SVHC (15-Jan-2018)
- Applications: General Purpose
- Approval Bodies: CB, CSA, EN, TUV, UL
- Approvals / Standards: CSA 22.2 No. 60601, EN 60601
- Efficiency: 87%
- External Depth: 76.2mm
- External Length / Height: 31.8mm
- External Width: 127mm
- Height: 31.8mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 85V
- Input Voltage DC Max: 370VDC
- Input Voltage DC Min: 120VDC
- Length: 76.2mm
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: 0°C
- Output Current Max: 6.9A
- Output Power Max: 175W
