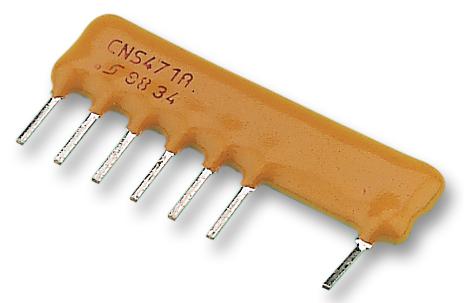

CNS471A6 Res, 6DECADE, 10m, 0.1W, Sip Vishay

VISHAYSKU:CNS471A6 Bestelcode:1165210

Prijs:
Actie prijs€157,37

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (26 units)

Documenten en downloads

Omschrijving

VISHAY - CNS471A6 - Decade Divider, 100 ohm to 9M ohm, CNS 471 Series, 6 Elements, SIP

  • Resistance: 9Mohm
  • Product Range: CNS47 Series
  • No. of Elements: 6Elements
  • Network Circuit Type: Voltage Divider
  • Resistor Case Style: SIP
  • No. of Pins: 7Pins
  • Voltage Rating: 1.2kV
  • Power Rating per Element: 100mW
  • Resistance Tolerance: ± 0.1%
  • Temperature Coefficient: ± 25ppm/°C
  • Automotive Qualification Standard: AEC-Q200
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Ratio Tolerance +: 0.03
  • Ratio Tolerance -: 0.03
  • Resistance R1: 9Mohm
  • Resistor Element Material: Thin Film
  • Resistor Mounting: Through Hole
  • Temperature Coeff. +: 25ppm/°C
  • Temperature Coeff. -: 25ppm/°C
  • Temperature Coefficient Ratio +: 2.5ppm
  • Temperature Coefficient Ratio -: 2.5ppm
  • Tolerance +: 0.1%
  • Tolerance -: 0.1%
  • Voltage Coefficient +: 0.002ppm/V
  • Voltage Coefficient -: -0.002ppm/V
  • Voltage Rating V DC: 1200V
