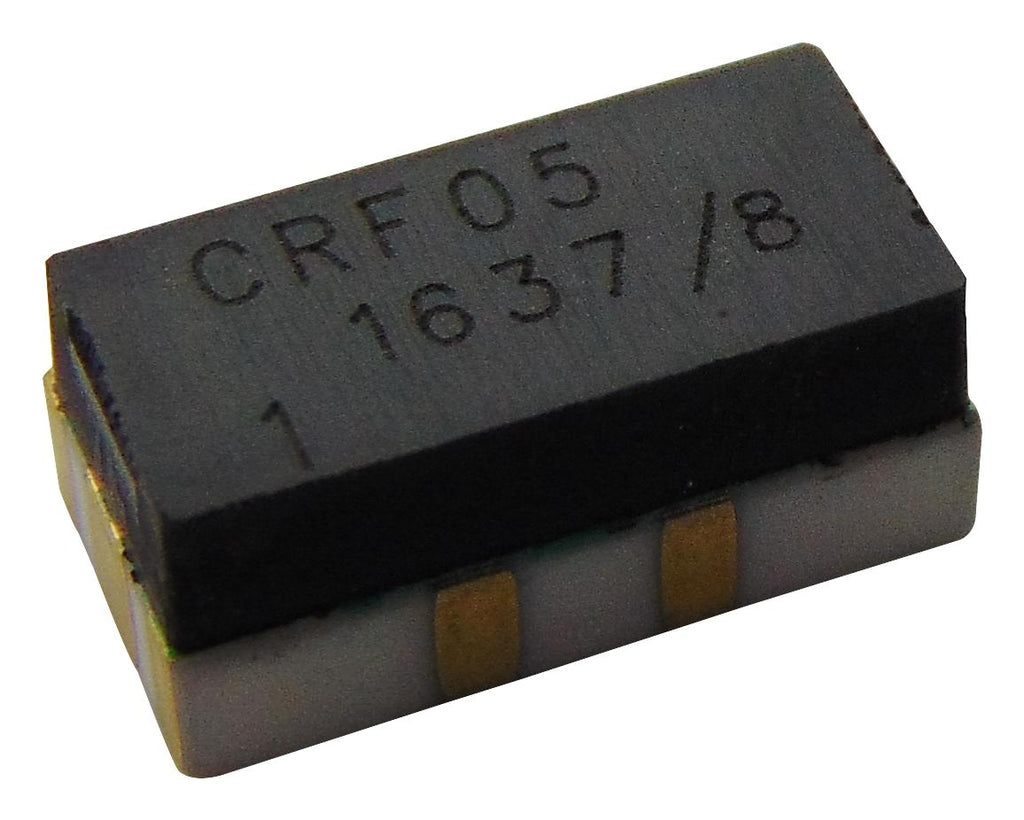

STANDEXMEDER - CRF05-1A - Reed Relay, SPST-NO, 5 VDC, CRF, Surface Mount, 150 ohm, 500 mA
- Contact Configuration: SPST-NO
- Coil Voltage: 5VDC
- Product Range: CRF Series
- Relay Mounting: SMD
- Coil Resistance: 150ohm
- Switching Current Max: 500mA
- Switching Voltage Max: 170V
- SVHC: No SVHC (15-Jan-2018)
- Case Material: Ceramic
- Coil Voltage VDC Nom: 5V
- Contact Current AC Max: 500mA
- Contact Current DC Max: 500mA
- Contact Resistance: 250mohm
- Contact Voltage AC Max: 170V
- Contact Voltage DC Max: 170V
- External Depth: 4.4mm
- External Height: 3.55mm
- External Length / Height: 3.55mm
- External Width: 8.6mm
- Insulation Resistance: 10000Gohm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Time: 0.1ms
- Release Time: 0.02ms
- Switch Current Max: 500mA
- Switching Power Max: 10W
- Switching Voltage AC / DC Max: 170VDC
- Type: CRF
