CT05-1535-G1 Switch, Reed, SPST-NO COTO Technology

COTO TECHNOLOGYSKU:CT05-1535-G1 Bestelcode:1608059

Prijs:
Actie prijs€16,00

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (599 units)

Documenten en downloads

Omschrijving

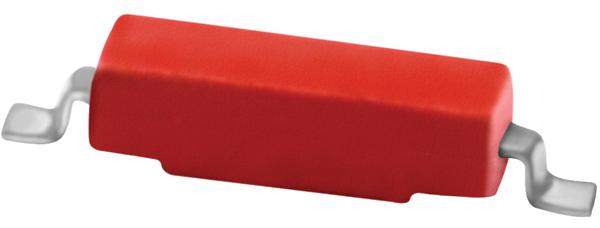

COTO TECHNOLOGY - CT05-1535-G1 - Reed Switch, CT05, SPST-NO, Surface Mount, 500 mA, 140 VDC, 5 W

  • Product Range: CT05 Series
  • Contact Configuration: SPST-NO
  • Switch Mounting: SMD
  • Contact Current Max: 500mA
  • Switching Voltage Max: 140VDC
  • Switching Power Max: 5W
  • Contact Resistance Max: 0.16ohm
  • Operate AT Min: 15AT
  • Operate AT Max: 35AT
  • SVHC: No SVHC (15-Jan-2019)
  • Breakdown Voltage Vbr: 230V
  • Contact Current AC Max: 250mA
  • Contact Current DC Max: 350mA
  • Contact Resistance: 160mohm
  • External Depth: 2.31mm
  • External Length / Height: 2.31mm
  • External Width: 6.4mm
  • Insulation Resistance: 1000000Mohm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -40°C
  • Operation Ampere Turns Range: 15AT to 50AT
  • Switching Current AC Max: 250mA
  • Switching Current DC Max: 350mA
  • Switching Voltage AC / DC Max: 100VAC
  • Switching Voltage AC / DC Min: 140VDC
