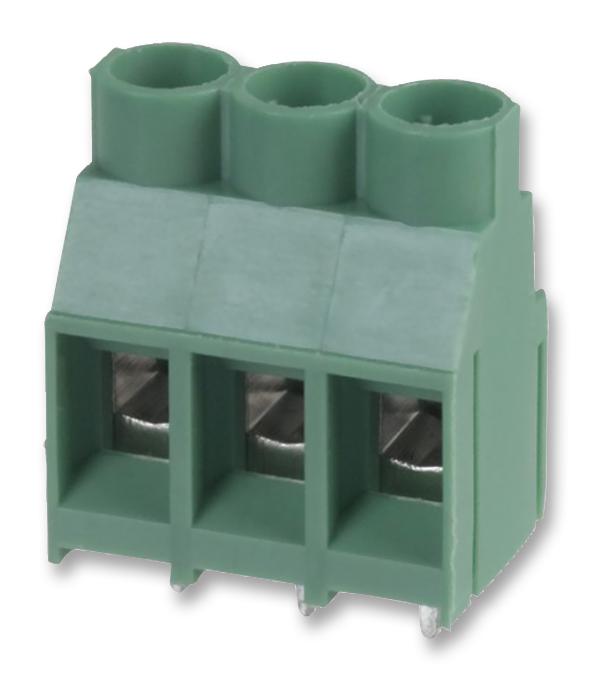

CTB04VZ/3 Terminal Block, Wire TO BRD, 3Pos, 10AWG Camdenboss

CAMDENBOSSSKU:CTB04VZ/3 Bestelcode:1678446

Prijs:
Actie prijs€10,34

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (41 units)

Documenten en downloads

Omschrijving

CAMDENBOSS - CTB04VZ/3 - Standard Terminal Block, Wire to Board, CTB04VZ, 3 Contacts, 9.52 mm, Terminal Block, PCB

  • Product Range: CTB04VZ Series
  • No. of Contacts: 3Contacts
  • Pitch Spacing: 9.52mm
  • Connector Type: Terminal Block, PCB
  • Connector Mounting: PCB Mount
  • Wire Size AWG Max: 10AWG
  • Wire Size AWG Min: 30AWG
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Brass
  • SVHC: No SVHC (15-Jan-2019)
  • Block Orientation: Through Hole Right Angle
  • Conductor Area CSA: 6mm²
  • Current Rating: 32A
  • External Length / Height: 28.56mm
  • Flammability Rating: UL94-V0
  • Height: 28.56mm
  • Insulation Resistance: 10Mohm
  • No. of Positions: 3Ways
  • Operating Temperature Max: 110°C
  • Operating Temperature Min: -20°C
  • Rated Voltage: 630V
  • Voltage Rating VAC: 450V
  • Wire Connection Method: Screw
  • Wire Size (AWG): 30AWG to 10AWG
  • Wire Size Range (AWG): 30-10
