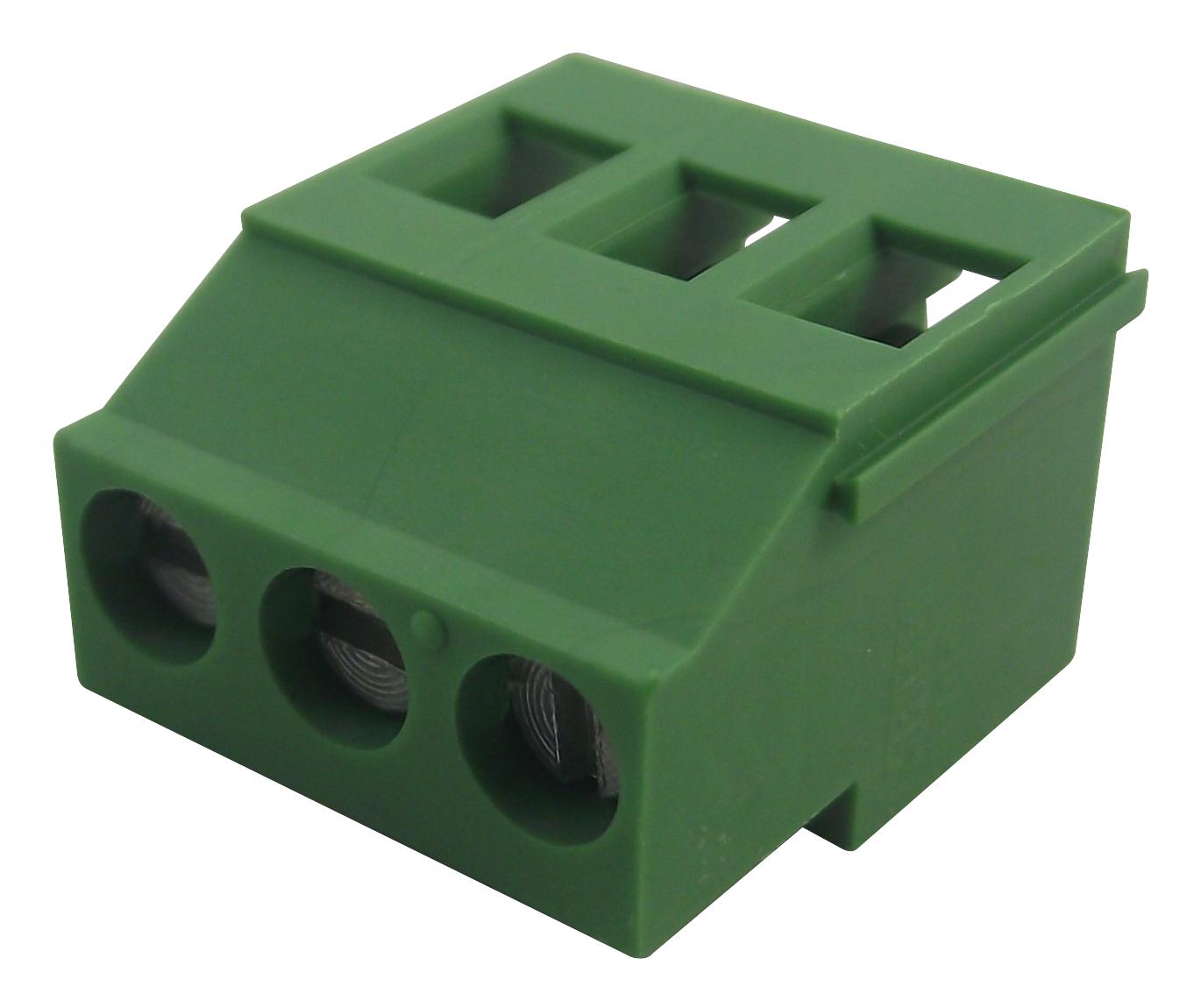

CTB3051/3BK Terminal Block, Wire TO BRD, 3Pos Camdenboss

CAMDENBOSSSKU:CTB3051/3BK Bestelcode:3882627

Prijs:
Actie prijs€1,64

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (2434 units)

Documenten en downloads

Omschrijving

CAMDENBOSS - CTB3051/3BK - Wire-To-Board Terminal Block, 3.5 mm, 3 Ways, 1 mm², Screw

  • Pitch Spacing: 3.5mm
  • No. of Positions: 3Ways
  • Wire Size AWG Min: -
  • Wire Size AWG Max: -
  • Conductor Area CSA: 1mm²
  • Wire Connection Method: Screw
  • Rated Current: 6A
  • Rated Voltage: 300V
  • Block Orientation: Through Hole Right Angle
  • Product Range: CTB3051 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Black
  • Connector Mounting: PCB Mount
  • Connector Type: Terminal Block, PCB
  • Contact Material: Copper
  • Contact Plating: Nickel Plated Contacts
  • Contact Resistance: 5mohm
  • Current Rating: 10.0A
  • External Length / Height: 10.50mm
  • Flammability Rating: UL94V-0
  • Height: 10.50mm
  • No. of Contacts: 3Contacts
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -33°C
  • Screw Material: Steel
  • Screw Plating: Zinc
  • Thread Size: M2
  • Voltage Rating AC Max: 125V
  • Voltage Rating VAC: 125V
  • Wire Area Size Max: 1mm²
  • Wire Size (AWG): 17AWG
