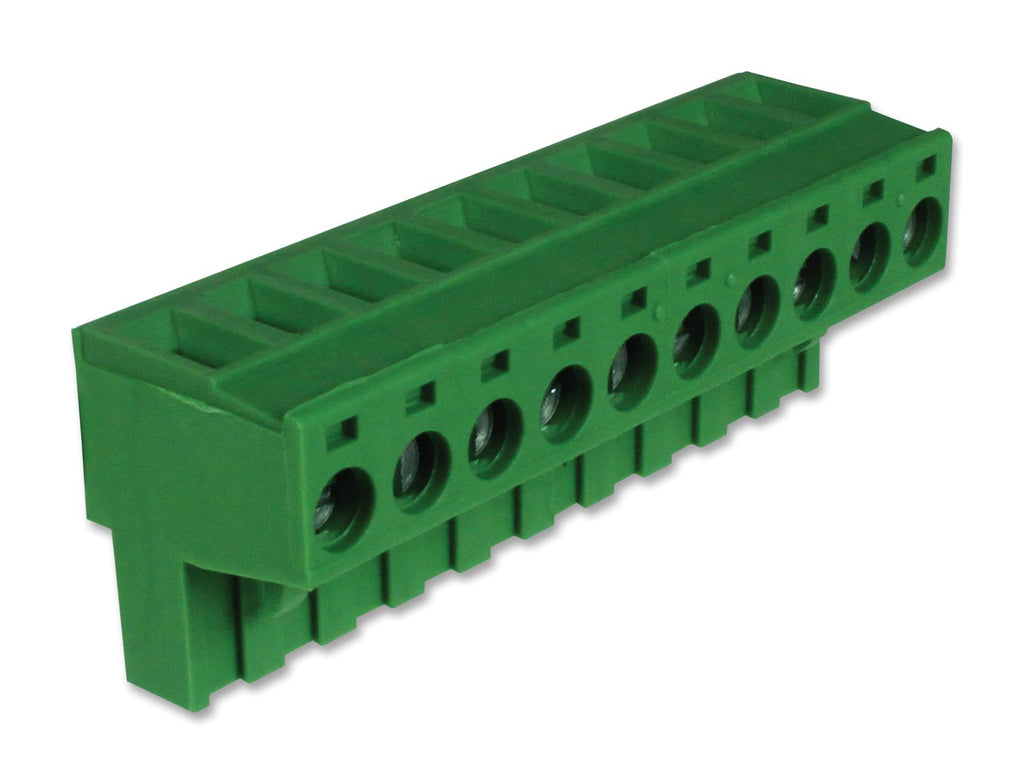

CTB9208/10 Terminal Block, Pluggable, 10Pos, 12AWG Camdenboss

CAMDENBOSSSKU:CTB9208/10 Bestelcode:1717019

Prijs:
Actie prijs€19,80

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (57 units)

Documenten en downloads

Omschrijving

CAMDENBOSS - CTB9208/10 - Pluggable Terminal Block, 5.08 mm, 10 Ways, 30AWG to 12AWG, 2.5 mm², Screw, 12 A

  • Pitch Spacing: 5.08mm
  • No. of Positions: 10Ways
  • Wire Size (AWG): 30AWG to 12AWG
  • Conductor Area CSA: 2.5mm²
  • Wire Connection Method: Screw
  • Rated Current: 12A
  • Rated Voltage: 320V
  • Product Range: CTB9208 Series
  • SVHC: No SVHC (15-Jan-2019)
  • Cable Diameter Max: 2.5mm
  • Colour: Green
  • Connector Mounting: Cable Mount
  • Connector Type: Terminal Block, Pluggable
  • Contact Material: Phosphor Bronze
  • Contact Plating: Tin Plated Contacts
  • Current Rating: 12A
  • Insulation Resistance: 5Mohm
  • Length: 55.88mm
  • Material: UL94-V0 Flame Retardant PA66
  • No. of Contacts: 10Contacts
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -20°C
  • Wire Size AWG Max: 12AWG
  • Wire Size AWG Min: 30AWG
  • Wire Size Range (AWG): 10
  • Withstand Voltage: 2.5kV
  • Working Voltage: 380V
