Terminal Blocks

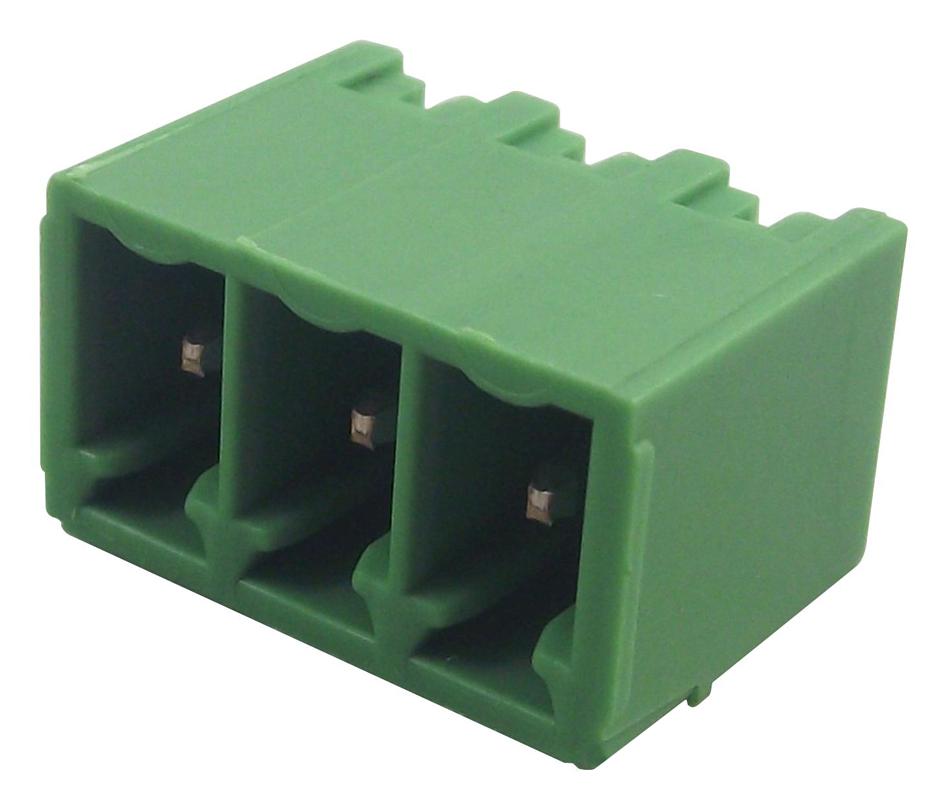

CAMDENBOSS Pluggable CTB93VE/3 PLUGGABLE TERM BLK,3WAY,3.81MM,MALE PCB CAMDENBOSS 1717060 CTB93VE/3
Ga met de muis over de afbeelding om in te zoomen Klik op de afbeelding om in te zomen
CAMDENBOSS Pluggable CTB93VE/3 PLUGGABLE TERM BLK,3WAY,3.81MM,MALE PCB CAMDENBOSS 1717060 CTB93VE/3

CTB93VE/3 Pluggable Term Blk,3WAY,3.81mm,Male Pcb Camdenboss

CAMDENBOSSSKU:CTB93VE/3 Bestelcode:1717060
Prijs:
€2,73

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Uitverkocht

Documenten en downloads

Omschrijving

CAMDENBOSS - CTB93VE/3 - Terminal Block, Header, 3.81 mm, 3 Ways, 10 A, 200 V, Through Hole Vertical

  • Pitch Spacing: 3.81mm
  • No. of Positions: 3Ways
  • Wire Size (AWG): -
  • Conductor Area CSA: -
  • Wire Connection Method: -
  • Rated Current: 10A
  • Rated Voltage: 200V
  • Product Range: CTB93VE Series
  • SVHC: No SVHC (15-Jan-2019)
  • Block Orientation: Through Hole Vertical
  • Colour: Green
  • Connector Mounting Orientation: PC Board
  • Contact Material: Phosphor Bronze
  • Contact Plating: Tin Plated Contacts
  • Contact Termination: Through Hole Vertical
  • Contact Termination Type: Through Hole
  • Current Rating: 10A
  • Gender: Header
  • Insulation Resistance: 5Mohm
  • Length: 11.9mm
  • Material: UL94-V0 Flame Retardant PA66
  • No. of Contacts: 3Contacts
  • No. of Rows: 1Rows
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -20°C
  • Polarisation Type: Vertical
  • Withstand Voltage: 1.25kV
  • Working Voltage: 200V
