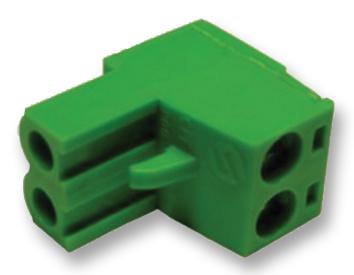

CAMDENBOSS - CTB9400/2 - Pluggable Terminal Block, 7.5 mm, 2 Ways, 30AWG to 12AWG, 2.5 mm², Screw, 12 A
- Pitch Spacing: 7.5mm
- No. of Positions: 2Ways
- Wire Size (AWG): 30AWG to 12AWG
- Conductor Area CSA: 2.5mm²
- Wire Connection Method: Screw
- Rated Current: 12A
- Rated Voltage: 500V
- Product Range: CTB9400 Series
- SVHC: No SVHC (15-Jan-2019)
- Colour: Green
- Connector Mounting: Cable Mount
- Connector Type: Terminal Block, Pluggable
- Contact Material: Brass
- Contact Plating: Copper Plated Contacts
- Current Rating: 12.0A
- Flammability Rating: UL94V-0
- No. of Contacts: 2Contacts
- Operating Temperature Max: 125°C
- Operating Temperature Min: -20°C
- Screw Material: Steel
- Screw Plating: Zinc
- Thread Size: M3
- Voltage Rating AC Max: 750V
- Voltage Rating VAC: 750V
- Wire Area Size Max: 2.5mm²
- Wire Size AWG Max: 12AWG
- Wire Size AWG Min: 30AWG
