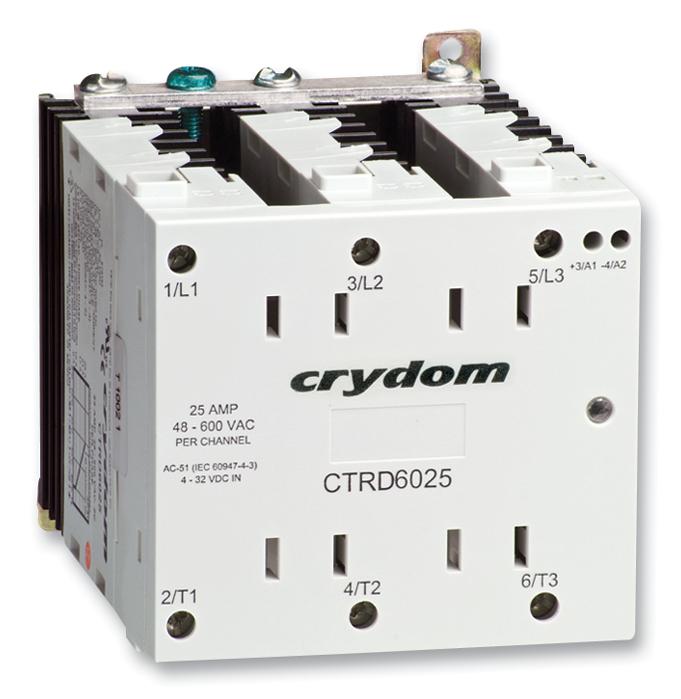

CTRC6025 SSR, 3PH, DIN, 600v/25A, ZC SENSATA/Crydom

SENSATA/CRYDOMSKU:CTRC6025 Bestelcode:1813604

Prijs:
Actie prijs€297,94

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Nog maar 2 producten leverbaar

Documenten en downloads

Omschrijving

SENSATA/CRYDOM - CTRC6025 - Solid State Relay, 25 A, 600 Vrms, DIN Rail, Cage Clamp, Zero Crossing

  • Contact Configuration: -
  • Load Current: 25A
  • Operating Voltage Max: 600Vrms
  • Relay Mounting: DIN Rail
  • Relay Terminals: Cage Clamp
  • Switching Mode: Zero Crossing
  • Operating Voltage Min: 48Vrms
  • Control Voltage Min: 90VAC
  • Control Voltage Max: 280VAC
  • Product Range: -
  • SVHC: No SVHC (07-Jul-2017)
  • Approval Bodies: CE
  • Approval Category: UL Recognised
  • Control Voltage AC Max: 280Vrms
  • Control Voltage AC Min: 180Vrms
  • Control Voltage Range: 180Vrms to 280Vrms
  • Control Voltage Type: AC
  • External Depth: 123.4mm
  • External Length / Height: 91.2mm
  • External Width: 90mm
  • Insulation Resistance: 10000Mohm
  • Load Current Min: 0.1A
  • No. of Phases: Three Phase
  • Operating Voltage Range: 48Vrms to 600Vrms
  • Output Type: Random-Fire, Zero-Crossing
  • Peak Surge Current: 300A
  • RMS Load Voltage Max: 600V
  • RMS Load Voltage Min: 48V
  • Voltage Drop @ Rated Current: 1.35V
